15 - 25kWh Residential Energy Storage High Voltage LiFePO4 Battery WiFi Bluetooth
Product Details
| Configuration | 3/4/5 Modules, 15.36/20.48/25.6kWh | Rated Voltage | 153.6V / 204.8V / 256V |
|---|---|---|---|
| Communication | CAN 2.0 / RS485 / WiFi / Bluetooth | Protection | IP55, Indoor & Outdoor |
| Warranty | 5 Years (optional 10‑year Extension) | ||
| Highlight | 15kWh Residential Energy Storage,25kWh Residential Energy Storage,WiFi High Voltage LiFePO4 Battery |
||
Product Description

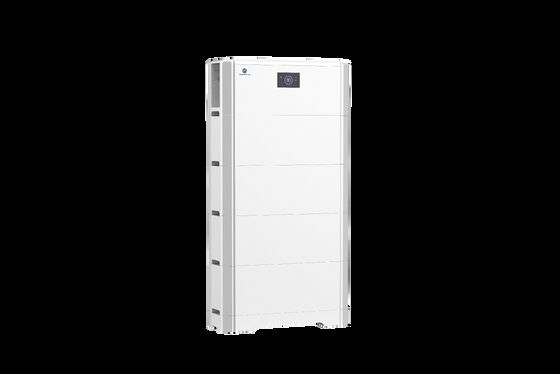

Camel HESB1 15/20/25kWh High Voltage LiFePO4 Battery | Residential Energy Storage System
Camel HESB1 is a modular high-voltage residential energy storage battery with 15.36–25.6kWh capacity, IP55, WiFi/Bluetooth monitoring, and wide compatibility with mainstream inverters.
Quick Details
- Model: HESB1‑15 / HESB1‑20 / HESB1‑25
- Configuration: 3/4/5 modules, 15.36/20.48/25.6kWh
- Battery Type: LiFePO4 (LFP)
- Rated Voltage: 153.6V / 204.8V / 256V
- Communication: CAN 2.0 / RS485 / WiFi / Bluetooth
- Protection: IP55, indoor & outdoor
- Certifications: CE, IEC62619, IEC62040, UN38.3
- Warranty: 5 years (optional 10‑year extension)
Product Description
Camel HESB1 is a plug‑and‑play high‑voltage residential energy storage system powered by safe LiFePO4 chemistry. It adopts modular stack design, supporting 15–25kWh single unit and expandable up to 75kWh via parallel connection. With smart BMS, WiFi/APP real‑time monitoring, and IP55 protection, it is widely compatible with mainstream hybrid inverters for solar self‑consumption, peak shaving, and backup power. Built for long cycle life, high safety, and easy installation, it is an ideal solution for household energy independence.
Product Specification
| Item | HESB1‑15 | HESB1‑20 | HESB1‑25 |
|---|---|---|---|
| Rated Capacity | 15.36kWh | 20.48kWh | 25.6kWh |
| Rated Voltage | 153.6V | 204.8V | 256V |
| Voltage Range | 134.4–172.8V | 179.2–230.4V | 224–288V |
| Rated Charge/Discharge Current | 52.5A / 52.5A | 52.5A / 52.5A | 52.5A / 52.5A |
| Protection Level | IP55 | IP55 | IP55 |
| Operating Temp | Charge: ‑10~50℃; Discharge: ‑20~50℃ | Charge: ‑10~50℃; Discharge: ‑20~50℃ | Charge: ‑10~50℃; Discharge: ‑20~50℃ |
| Dimension (WHD) | 7201110220mm | 7201360220mm | 7201610220mm |
| Weight | 146.5kg | 189kg | 231.5kg |
| Warranty | 5 years | 5 years | 5 years |
Product Application
- Residential solar + storage systems
- Off‑grid & hybrid backup power supply
- PV self‑consumption & peak‑valley arbitrage
- Home energy management system
- Villa & small commercial energy storage
- Retrofitted energy storage projects
Product Features
- Modular & Expandable
15–25kWh single unit; expandable up to 75kWh in parallel.
- High Safety LiFePO4
Advanced lithium iron phosphate battery with multi‑protection BMS.
- IP55 Waterproof & Dustproof
Suitable for indoor and outdoor shaded installation.
- Smart Monitoring
WiFi & Bluetooth; mobile APP for real‑time data & fault alarm.
- Wide Inverter Compatibility
Support CAN/RS485, match mainstream PCS/inverter brands.
- Full Electrical Protection
Over/under voltage, overcurrent, over/low temp, short circuit protection.
- Easy Wall‑Mount Installation
Compact stack design, clear wiring, quick commissioning.
Product Advantage
- High Compatibility
Plug‑and‑play with most hybrid inverters on the market.
- Long Service Life
LiFePO4 cell, stable performance, long cycle life.
- Flexible Capacity
Modular design to meet different household energy demands.
- Smart & Maintenance‑Light
APP remote monitoring, low routine maintenance cost.
- Global Certifications
Comply with IEC, CE, UN38.3 for global market access.
- Strong Environmental Adaptability
Wide working temperature, IP55, anti‑corrosion.
FAQ
Q1: What inverters are compatible with HESB1?
A: It supports most mainstream hybrid inverters via CAN/RS485 communication.
Q2: Can HESB1 be installed outdoors?
A: Yes, IP55 protection allows outdoor shaded installation.
Q3: How many units can be connected in parallel?
A: Up to 3 units in parallel, max capacity 75kWh.
Q4: How to monitor the battery status?
A: Via built‑in display and mobile APP (WiFi/Bluetooth).
Q5: What is the warranty period?
A: Standard 5‑year warranty, extendable to 10 years.
Q6: What is the operating temperature range?
A: Charge: ‑10℃ to 50℃; Discharge: ‑20℃ to 50℃.
Q7: Is routine maintenance required?
A: Maintain SOC 45–55% for long‑term storage; recharge every 6 months.
Q8: What safety protections are included?
A: Overvoltage, undervoltage, overcurrent, over/low temperature, short circuit, insulation protection.
