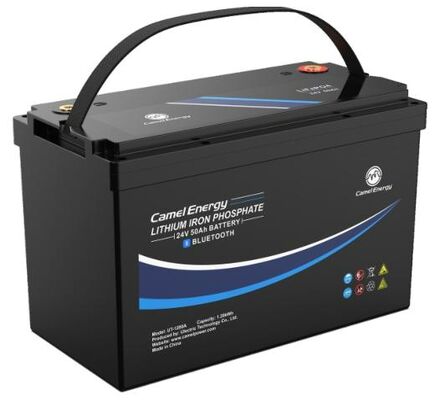

11KG Lithium Iron Phosphate Battery Backup IEC 62619 25.6V Lithium 50ah Battery
Product Details
| Voltage | 25.6V | Capacity | 50Ah |
|---|---|---|---|
| Weight | 11KG | Storage Range | -5°C~35°C |
| Low Temperature Charging Heating | Optional | Cycle Life | >3000 Times, 0.5C, 80% DOD 25°C |
| Protection Level | IP65 | Certification | UN38.3, IEC 62619 |
Product Description

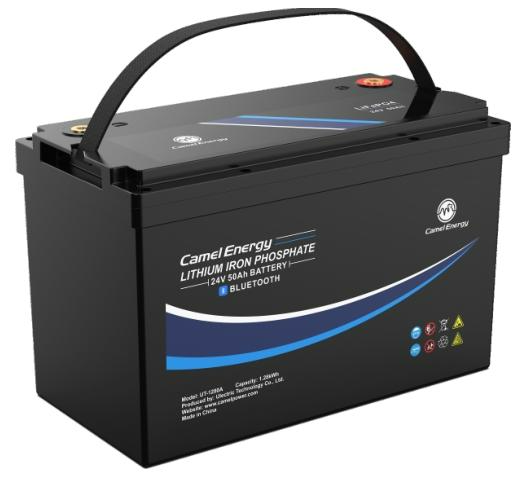

Camel Energy UT-1280A 1280Wh Energy LFP Battery with 3000+ Cycles and IP65 Protection for 24V Systems
Quick Detail
- Brand: Camel Energy
- Model: UT-1280A
- Nominal Voltage: 25.6V
- Nominal Capacity: 50Ah
- Rated Energy: 1280Wh
- Cycle Life: >3000 cycles (0.5C, 80% DOD)
- IP Rating: IP65
- Certification: UN38.3
- Terminal: M8 Threaded Studs
- Dimensions (W*D*H): 330*172*215mm
- Weight: 11kg
- Bluetooth: Optional
- Low‑temp Heating: Optional
- Warranty: 36 Months
Product Description
Camel Energy UT-1280A is a 25.6V compact lithium iron phosphate battery designed for 24V-class mobile, off-grid, and backup power scenarios. It features a rugged ABS shell, intelligent BMS, optional Bluetooth monitoring, and low-temperature heating. With IP65 protection, stable current output, long cycle life, and maintenance-free design, it provides safe, reliable power for 24V equipment and small energy storage systems.
Product Specification
| Parameter | Value |
|---|---|
| Nominal Voltage | 25.6V |
| Nominal Capacity | 50Ah |
| Rated Energy | 1280Wh |
| Dimensions (W*D*H) | 330*172*215mm |
| Weight | 11kg |
| Charge Cut-off Voltage | 29.2V |
| Discharge Cut-off Voltage | 21.6V |
| Max. Charge Current | 50A |
| Max. Discharge Current | 50A |
| Recommended Charge Temp | 0°C~55°C |
| Recommended Discharge Temp | -20°C~60°C |
| Storage Temperature | -5°C~35°C |
| BMS Protection | Over/under voltage, over/low temp, short circuit, auto cell balancing |
| Low-temp Heating (Optional) | ≤0°C auto start; >5°C auto stop |
| Bluetooth Monitoring | Optional (Voltage/Current/Temp/SOC) |
| IP Rating | IP65 |
| Certification | UN38.3 |
| Cycle Life | >3000 cycles (0.5C, 80% DOD) |
| Package | Battery*1, User Manual*1, M8*12mm*2 |
Product Application
- 24V RVs, campers, caravans
- Marine / yachts / small boats
- 24V off-grid solar energy storage
- Small backup power systems
- Outdoor equipment & emergency power
- 24V industrial tools & test instruments
- Golf carts & utility vehicles
Product Features
- 25.6V Stable Output – Perfect fit for standard 24V power systems
- Compact & Lightweight – Space-saving design for easy installation
- Smart BMS – Full protection + automatic cell balancing
- IP65 Waterproof & Dustproof – For harsh indoor/outdoor use
- Optional Low-temp Heating – Supports safe charging at -20~0°C
- Optional Bluetooth Monitoring – Real-time status via mobile APP
- Multiple Operating Modes – Charge / discharge / standby / sleep
- UN38.3 Certified – Safe for global transportation
Product Advantage
- Lighter & smaller than equivalent lead-acid batteries
- Maintenance-free, no watering or regular upkeep
- Stable voltage with no sudden drop during discharge
- Wide temperature range: -20°C~60°C discharge
- Safe LFP chemistry, no thermal runaway risk
- Low self-discharge, long standby time
- Standard M8 terminals for quick installation
- 36-month official manufacturer warranty
FAQ
Q1: How to monitor battery status in real time?
A: Use the optional Bms Blue Tooth APP to view SOC, voltage, current, and temperature.
Q2: How does the low-temperature heating function work?
A: Heating activates automatically at ≤0°C (with external power) and stops at >5°C to ensure normal charging.
Q3: How to wake the battery from sleep mode?
A: Apply charging voltage ≥25.6V or discharge current >800mA.
Q4: What to do if the battery shuts down due to low voltage?
A: Reactivate by connecting a charger with voltage ≥25.6V.
Q5: Does the battery support simultaneous charging and discharging?
A: No, this operation is strictly prohibited.
Q6: What are the recommended storage conditions?
A: Store at 15–35°C, recharge every 3 months, avoid direct sunlight and heat sources.
Q7: What does the 36-month warranty cover?
A: Covers defects under proper operation and installation; excludes improper use, disassembly, or physical damage.
