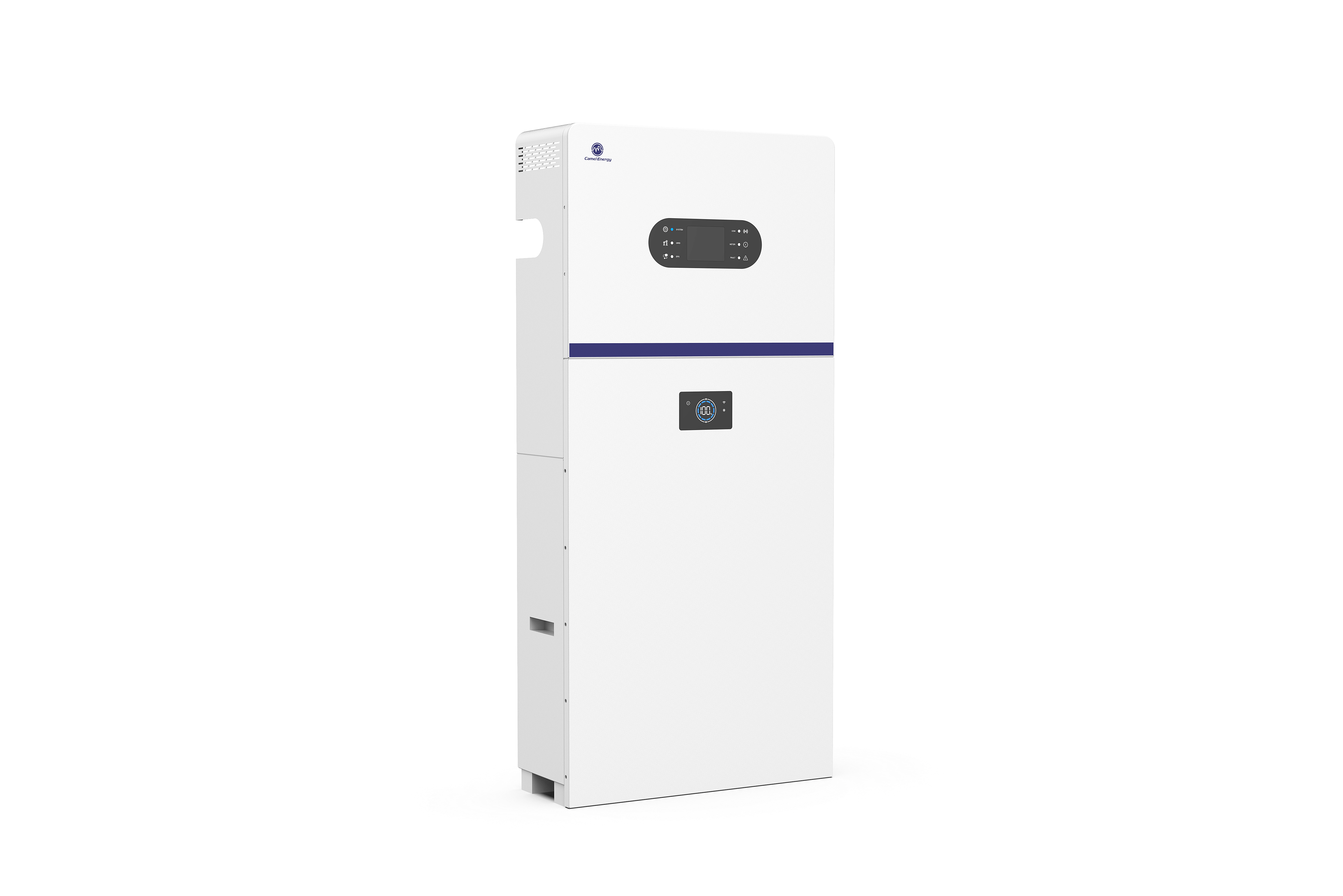

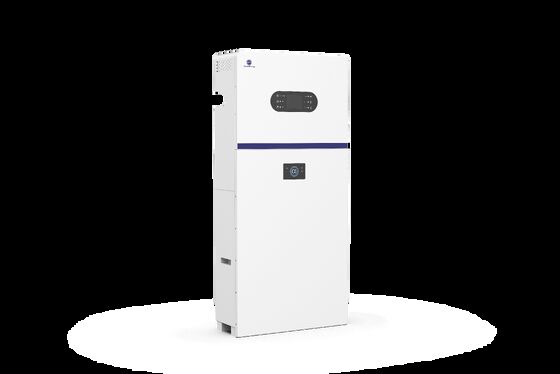

Home Residential Energy Storage System Three Phase 400Vac 9.48kWh IP65 Protection

• Product Name: Intel 10 Three-Phase Hybrid Energy Storage System
• Inverter: Compatible with three-phase grid & load
• Battery: Camel B10 LiFePO4 battery (9.48kWh, expandable up to 4 packs)
• PV Input: Dual MPPT, 100–580VDC, max 9000W
• Output: Three-phase 400Vac, 50/60Hz
• Protection: IP65, wall-mounted, natural cooling
• Communication: WiFi, RS485, CAN, BMS
• Certifications: CE, IEC62109-1/-2, EN61000-6-1/-2/-3/-4, VDE4105, EN50549
• Application: Commercial, industrial, residential three-phase power scenarios

Camel Intel 10 three-phase energy storage system is an integrated PV & energy storage solution designed for three-phase power grids. It combines inverter, lithium iron phosphate battery and intelligent energy management to realize high self-consumption of photovoltaic power, peak-valley arbitrage and uninterrupted backup power. The system supports on-grid/off-grid seamless switching, modular capacity expansion, and full-stack safety protection. With dedicated APP monitoring and control, it is widely used in commercial, industrial and high-power residential three-phase power supply scenarios.

• Three-phase residential & villa energy storage systems
• Commercial & industrial three-phase photovoltaic energy storage
• Uninterrupted backup power for three-phase important loads
• Peak shaving and valley filling for factories & businesses
• DC-coupled / AC-coupled / hybrid three-phase PV systems
• Areas with unstable three-phase grid or off-grid power supply
• Small industrial & commercial load power management

1. Three-Phase Stable Output

   Adapt to standard three-phase 400Vac grid, strong load adaptability.

2. Five Smart Operating Modes

   Backup, Self-consumption, Time-of-Use (TOU), Energy Scheduling, External Control.

3. Dual MPPT High Efficiency

   Wide PV voltage input, strong compatibility with PV modules.

4. On-grid / Off-grid Seamless Switching

   Automatic switch to backup power when grid failure, no power interruption.

5. Modular Capacity Expansion

   Support 1–4 Camel B10 batteries in parallel, max capacity 37.92kWh.

6. APP Intelligent Monitoring

   Real-time data, fault alarm, remote parameter setting.

7. Full Safety Protection

   Over/under voltage, over current, over temperature, insulation monitoring, leakage protection, anti-islanding.

8. IP65 Rugged Design

   Dustproof & waterproof, suitable for indoor & outdoor shaded installation.

1. Three-Phase Compatibility

   Perfectly match three-phase grids, suitable for commercial & industrial scenarios.

2. High Integration & Easy Installation

   All-in-one structure, wall-mounted, simplified wiring, space-saving.

3. High Safety & Long Life

   LiFePO4 battery + multi-protection design, stable and reliable.

4. Energy Cost Reduction

   Maximize PV self-consumption, reduce electricity expense.

5. Intelligent Operation & Maintenance

   APP remote control, automatic fault diagnosis, low O&M cost.

6. International Certifications

   Comply with EU, German and other global three-phase grid standards.

A: Yes, it is specially designed for three-phase commercial, industrial and high-power residential scenarios.

A: Support 1–4 Camel B10 LiFePO4 batteries, maximum capacity 37.92kWh.

A: Yes, it will automatically switch to off-grid three-phase output to supply loads.

A: Wall-mounted installation; keep ≥300mm clearance on left/right/top, ≥100mm front for heat dissipation.

A: Use Camel Storage APP via WiFi to view real-time data, set working modes and check alarms.

A: Include DC reverse connection, over/under voltage, over current, over temperature, insulation monitoring, leakage protection, anti-islanding protection.

A: Yes, IP65 protection grade, suitable for outdoor shaded installation.

A: Semi-annual cleaning and cable inspection; SOC calibration every two weeks.
