30kWh - 60kWh Commercial Energy Storage Solar Battery Storage Systems 307.2Vdc
Product Details
| Application | Commercial,home & Outdoor,Solar System | Rated Energy | 30kWh-60kWh |
|---|---|---|---|
| System Nominal Voltage (v) | 307.2Vdc-614.4Vdc | Number Of Battery Modules | 6/8/10/12 |
| Max. Continuous Charge Current | 100A | Net Weight | 580kg (30kWh) / 670kg (40kWh) / 760kg (50kWh) / 850kg (60kWh) |
| Warranty | 5 Years (extendable To 10 Years) | Working Altitude | Max. 2000m |
| Working Humidity | 5%~90% RH (no Condensation) | Protection | IP55 |
| Highlight | 30kWh Commercial Energy Storage,60kWh Commercial Energy Storage,commercial solar battery storage systems 307.2Vdc |
||
Product Description

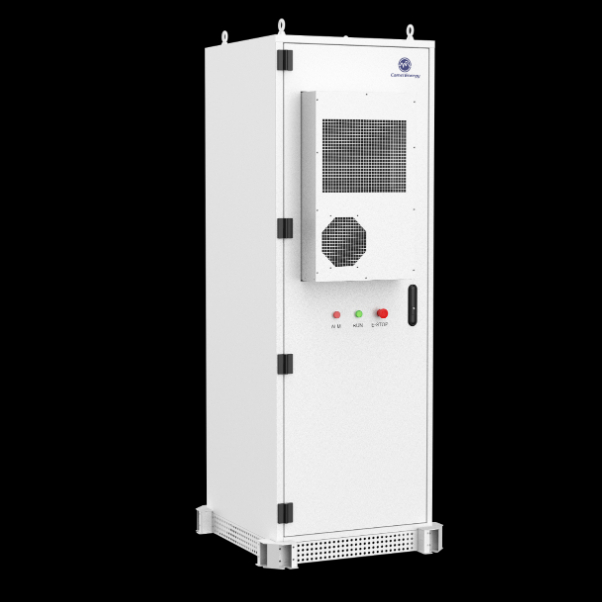

ICHES Series Cabinet-type Energy Storage System
Professional Modular Li-ion Battery Energy Storage Solution for Industrial & Commercial Scenarios
Quick Specifications
- Product Series: ICHES-30/40/50/60
- Rated Energy: 30kWh / 40kWh / 50kWh / 60kWh
- Cell Type: Lithium Iron Phosphate (LFP)
- System Nominal Voltage: 307.2Vdc / 409.6Vdc / 512Vdc / 614.4Vdc
- Max. Charge/Discharge Current: 100A (continuous)
- Protection Grade: IP55 (outdoor applicable)
- Cycle Life: 6000 cycles (25℃, 0.5C/0.5C, 90%DOD, 70% EOL)
- Temperature Control: Integrated Air-conditioning (2000W cooling capacity)
- Fire Protection: S-type Aerosol + Smoke/Temperature Sensors
- Scalability: Up to 4 cluster cabinets parallel
- Warranty: 5 years (extendable to 10 years)
- Certifications: IEC62619, CE, UN38.3
- Dimensions: 840*2120*955mm (W*H*D, inverter excluded)
- Communication: CAN bus
Product Overview
Camel Energy's ICHES Series Cabinet-type Energy Storage System is a highly integrated, modular rechargeable lithium iron phosphate battery solution engineered for flexible industrial and commercial energy storage demands. The compact all-in-one cabinet design integrates high-performance LFP battery modules, intelligent main control, distribution components, integrated air-conditioning temperature control, cabinet-level fire protection, and safety systems—with optional energy storage inverter for complete energy storage deployment.
Core System Parameters
| Item | ICHES-30 | ICHES-40 | ICHES-50 | ICHES-60 |
|---|---|---|---|---|
| Number of Battery Modules | 6 | 8 | 10 | 12 |
| Rated Energy | 30kWh | 40kWh | 50kWh | 60kWh |
| System Nominal Voltage | 307.2Vdc | 409.6Vdc | 512Vdc | 614.4Vdc |
| System Voltage Range | 268.8~345.6Vdc | 358.4~460.8Vdc | 448~576Vdc | 537.6~691.2Vdc |
| Max. Continuous Charge Current | 100A | 100A | 100A | 100A |
| Max. Continuous Discharge Current | 100A | 100A | 100A | 100A |
Mechanical & Environmental Parameters
| Category | Parameter |
|---|---|
| Dimensions (W*H*D) | 840*2120*955mm (inverter not included) |
| Net Weight | 580kg (30kWh) / 670kg (40kWh) / 760kg (50kWh) / 850kg (60kWh) |
| Protection Grade | IP55 |
| Installation Method | Hoisting & floor fixing (expansion bolt) |
| Working Altitude | Max. 2000m |
| Working Humidity | 5%~90% RH (no condensation) |
| Charging Temperature | 0℃ ~ 50℃ |
| Discharging Temperature | -20℃ ~ 55℃ |
| Storage Temperature | -10℃ ~ 35℃ (recommended) |
Temperature Control & Fire Protection
| Component | Core Specs |
|---|---|
| Integrated Air-conditioning | Rated Voltage: 220Vac; Cooling Capacity: 2000W; Heating Capacity: 1000W; Protection Grade: IP55 |
| Fire Protection System | S-type aerosol fire extinguisher + smoke sensor + temperature sensor; cabinet-level fire detection & suppression |
Safety & Protection Features
| Protection Function | Details |
|---|---|
| Electrical Protection | Charging overvoltage, discharging undervoltage, charge/discharge overcurrent, short circuit protection |
| Temperature Protection | Charge/discharge over-temperature, charge/discharge low-temperature protection |
| Other Protection | Cell voltage/temperature difference protection, low insulation resistance protection, contactor adhesion protection, pre-charging failure protection |
Certifications
IEC62619, CE, UN38.3
Applications
- Industrial & Commercial Peak Shaving & Valley Filling: Automatically charges during grid off-peak hours and discharges during peak load periods to reduce electricity costs
- Emergency Backup Power Supply: Provides reliable off-grid power for critical equipment during grid outages
- Renewable Energy Integration (PV/Wind Storage): Stores surplus clean energy from distributed photovoltaic or wind power systems
- Microgrid Construction: Integrates with diesel generators, charging piles, and on-site loads for independent microgrid systems
- Demand Side Management & Grid Response: Responds to grid demand signals for peak regulation and frequency modulation
- On-site Load Regulation: Smooths power fluctuation of high-power, intermittent industrial and commercial loads
Key Features
- Multi-model Configurable & Scalable Modular Design: Four standard models with parallel expansion support
- IP55 Grade All-weather Adaptation: Suitable for outdoor and harsh environments
- Integrated Air-conditioning Temperature Control: Precise internal temperature management
- Cabinet-level Intelligent Fire Protection System: Real-time detection and rapid suppression
- Multi-dimensional Intelligent Safety Protection: Comprehensive electrical and temperature protection
- All-in-one Integrated Cabinet Design: Compact structure with minimal footprint
- WIFI Remote Management & Real-time Monitoring: Unmanned operation and remote diagnostics
- High Cycle Life & Long Warranty: 6000 cycles with 5-year extendable warranty
- International Certification Compliance: Meets global market access requirements
Product Advantages
- Flexible Capacity Matching & Scalable Expansion: On-demand capacity selection with step-by-step expansion
- All-weather Reliability & Easy Installation: Stable operation in harsh environments with rapid deployment
- Comprehensive Safety & Low Risk: Three-dimensional safety defense system
- Intelligent Operation & Reduced O&M Cost: Remote management and fault diagnosis
- Long Service Life & Stable Performance: High-quality LFP cells with precise temperature control
- One-stop Solution & High Compatibility: Integrated design with optional inverter matching
- International Compliance & Reliable After-sales: Global certifications with extendable warranty
- Energy Efficiency Optimization & Economic Benefits: Multiple intelligent energy management strategies
Frequently Asked Questions
Q1: What models are available in the ICHES Series, and what is the maximum expandable capacity?
A: The series has four standard models: ICHES-30 (30kWh), ICHES-40 (40kWh), ICHES-50 (50kWh), ICHES-60 (60kWh). It supports up to 4 cluster cabinets in parallel, with the maximum expandable capacity of 240kWh (60kWh*4).
Q2: What is the protection grade of the ICHES Series, and is it suitable for outdoor installation?
A: The system has an IP55 dustproof and waterproof protection grade, specially designed for outdoor/semi-outdoor installation and can adapt to various harsh on-site environments without additional protective buildings.
Q3: What temperature control method is adopted, and what are its core parameters?
A: It is equipped with an integrated industrial-grade air-conditioning with 220Vac rated voltage, 2000W cooling capacity and 1000W heating capacity, which precisely controls the internal temperature of the cabinet.
Q4: What fire protection measures are equipped in the system?
A: The system is equipped with a cabinet-level intelligent fire protection system, including S-type aerosol fire extinguishers, smoke sensors and temperature sensors for real-time fire detection and rapid initial suppression.
Q5: What is the cycle life of the ICHES Series, and what is the warranty period?
A: The cycle life is 6000 cycles (25℃, 0.5C/0.5C, 90%DOD, 70% residual capacity); the standard warranty is 5 years, extendable to 10 years.
Q6: Does the system support remote management, and how to configure the network?
A: Yes, it supports WIFI remote management. The WIFI name is the battery SN code, default password is jjwl123!@#; access 172.16.254.254 via browser (default account/password: admin/admin) for network configuration.
Q7: What are the installation requirements for the ICHES Series?
A: The system uses hoisting + floor fixing installation; base bearing capacity >2000Kg, base height >200mm, minimum gap on sides/top ≥300mm/500mm; requires flat, dry ground without water accumulation.
Q8: What safety protection functions does the system have?
A: Multi-dimensional safety protection including charging overvoltage/discharging undervoltage, charge/discharge overcurrent, short circuit, over-temperature/low-temperature, and other protection functions with fault self-diagnosis.
Q9: What communication protocol does the ICHES Series support, and is it compatible with third-party inverters?
A: Standard communication protocol is CAN bus; compatible with mainstream energy storage inverters, with optional matching inverter for one-stop deployment.
Q10: What is the operating temperature range of the system?
A: Charging temperature range: 0℃ ~ 50℃, discharging temperature range: -20℃ ~ 55℃, recommended storage temperature: 20℃ ~ 30℃.
