5kWh Residential Energy Storage 15kwh ESS 3600W Wall Mounted Solar Battery
| Place of Origin | China |
|---|---|
| Brand Name | Camel Energy |
| Certification | IEC 62109‑1, EN 62109‑1, EN 61000‑6‑1/2/3/4, VDE 4105, EN 50549‑1, C10/11, G98/G99/G100, CE, NRS 097‑2‑1, UNE 2 |
| Model Number | Camel ALSES‑3600S |
| Minimum Order Quantity | 20 pcs |
| Price | EXW 1300USD~2570USD |
| Packaging Details | 1 pcs/carton |
| Delivery Time | 35 working days |
| Payment Terms | T/T、L/C、D/P |
| Supply Ability | 2000 pcs/month |
Product Details
| Capacity | 5kWh (expandable Up To 15kWh) | Output | 3600W; AC 220/230/240V 50/60Hz |
|---|---|---|---|
| Mount | Stackable & Wall‑mounted | Structure | Split / Integrated Optional |
| Inverter | Parallel‑capable; 2*MPPT | Protection | IP65 (inverter), IP20 (battery) |
| Warranty | 5 Years (extendable To 10 Years) | ||
| Highlight | 5kWh Residential Energy Storage,ESS 15kwh solar battery,3600W wall mounted solar battery |
||
Product Description

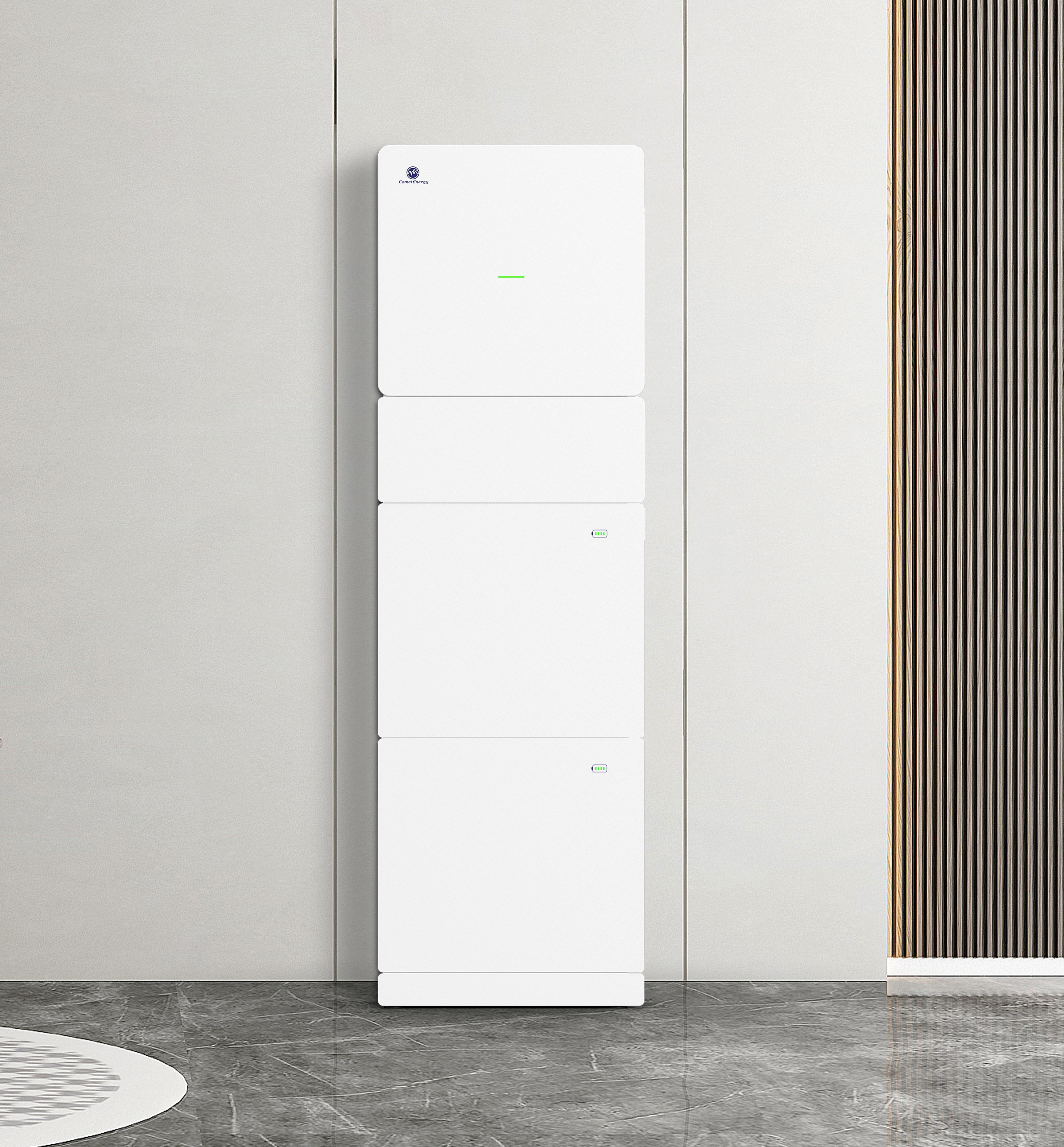

Camel ALSES‑3600S Low‑Voltage Residential Stackable Energy Storage System
Professional, Compact, Expandable Home Energy Solution
Quick Details
- Model: Camel ALSES‑3600S
- Type: Low‑voltage residential stackable ESS
- Capacity: 5kWh (expandable up to 15kWh)
- Output: 3600W; AC 220/230/240V 50/60Hz
- Mount: Stackable & wall‑mounted
- Structure: Split / integrated optional
- Inverter: Parallel‑capable; 2*MPPT
- Protection: IP65 (inverter), IP20 (battery)
- Warranty: 5 years (extendable to 10 years)
Product Description
Camel ALSES‑3600S is a low‑voltage modular residential energy storage system designed for stable backup, solar self‑consumption, and off‑grid power supply. It adopts stackable & wall‑mounted structure for flexible installation, supports parallel battery & inverter expansion, and offers both split and integrated configurations. The system delivers reliable, clean energy for homes while cutting electricity costs and ensuring continuity during outages.
Product Specification
| Item | Details |
|---|---|
| Model | Camel ALSES‑3600S |
| Rated AC Output | 3600W |
| AC Output | 220/230/240V L/N/PE, 50/60Hz |
| Battery Capacity | 5kWh (expandable to 15kWh) |
| Battery Voltage | 51.2VDC; range 44.8–57.6VDC |
| Nominal Charge/Discharge Power | 3.6kW / 5kW |
| Max. Charge/Discharge Current | 50A / 100A |
| PV Input | 6000W; 80–550VDC; 2*MPPT |
| Inverter Protection | IP65 |
| Battery Protection | IP20 |
| Dimensions (Inverter) | 500*470*180mm |
| Dimensions (Battery) | 500*440*167mm |
| Weight | 77kg (5kWh) / 125kg (10kWh) / 173kg (15kWh) |
| Certifications | IEC 62109‑1, EN 62109‑1, EN 61000‑6‑1/2/3/4, VDE 4105, EN 50549‑1, C10/11, G98/G99/G100, CE, NRS 097‑2‑1, UNE 2 |
| Warranty | 5 years (extendable to 10 years) |
Product Application
- Residential solar + storage self‑consumption
- Emergency backup power (grid blackouts)
- Off‑grid homes, cabins, remote residences
- Peak load shifting & electricity cost reduction
- Small shops, home offices, and critical loads
Product Features
- Stackable & Wall‑Mounted
Dual installation for space efficiency and layout flexibility.
- Modular Capacity Expansion
5kWh base, expandable in parallel to 15kWh.
- Dual Configuration
Supports split and integrated systems for different scenarios.
- Inverter Parallel Capability
Boost power and enhance system redundancy.
- High Compatibility PV Input
2*MPPT, wide voltage 80–550VDC, max 6000W.
- Strong EPS Backup
Stable off‑grid/emergency power supply.
- Global Certifications
Meets major international grid & safety standards.
Product Advantage
- Flexible Deployment
Stack or wall‑mount; split/integrated design adapts to home layout.
- Scalable Energy
Start small and expand capacity as needed, lower initial investment.
- Stable & Reliable
IP65 inverter, robust BMS, long‑life LiFePO4 battery.
- Cost‑Effective
Maximize solar usage, reduce grid bills, ensure backup.
- Easy Maintenance
Modular structure, simple wiring, long warranty.
- Global Ready
Multi‑voltage, multi‑standard certified for global markets.
FAQ
1. What is the standard capacity and maximum expandable capacity?
Standard: 5kWh; max expandable: 15kWh via parallel batteries.
2. Can I install it on wall or stack freely?
Yes. It supports stackable & wall‑mounted for flexible placement.
3. Does it work with my solar panels?
Yes. Wide PV input 80–550VDC, 2*MPPT, max 6000W.
4. Can it supply power when grid is down?
Yes. It supports EPS/off‑grid mode for emergency backup.
5. What is the warranty period?
Standard 5 years, extendable up to 10 years.
6. Are inverter and battery sold separately?
System supports split or integrated; contact us for configuration options.
7. What certifications does it have?
CE, IEC, EN, VDE, G98/G99/G100, NRS, UNE, etc.
