LFP Lithium Ion Battery Module Battery Lifepo4 48V 100Ah Li Iron Phosphate
Product Details
| Voltage | 48V | Capacity | 100Ah (4.8kWh) |
|---|---|---|---|
| Communication | CAN/RS485 (Bluetooth Optional) | Protection Grade | IP20 (indoor Use) |
| Cycle Life | 5000 Cycles (80% Residual Capacity @25℃, 0.5C/0.5C, 90%DOD) | Operating Temp | Charge 0~55℃; Discharge -20~60℃ |
| Highlight | LFP lithium ion battery module,battery lifepo4 48v 100ah,IP20 li iron phosphate battery |
||
Product Description
CBLV 5120-B1 48V 100Ah LFP Energy Storage Battery
Modular Indoor Solution for Reliable Energy Storage
Quick Detail
- Cell Type: Lithium Iron Phosphate (LFP)
- Rated Voltage/Capacity: 48V / 100Ah
- Rated Energy: 4.8kWh (single module); Max 19.2kWh (4 modules parallel)
- Charge/Discharge Current: 50A (rated); 100A (max)
- Communication: CAN/RS485 (Bluetooth optional)
- Protection Grade: IP20 (indoor use)
- Cycle Life: 5000 cycles (80% residual capacity @25℃, 0.5C/0.5C, 90%DOD)
- Certifications: UN 38.3, IEC 62619, CE
- Dimensions: 480*137*460mm (WHD)
- Net Weight: 42kg (92.6lbs)
- Operating Temp: Charge 0~55℃; Discharge -20~60℃
Product Description
The CBLV 5120-B1 is a high-reliability lithium iron phosphate (LFP) energy storage battery, engineered for indoor applications with modular scalability. Adopting a 1P15S connection design, it supports up to 4 modules in parallel, flexibly expanding energy capacity from 4.8kWh to 19.2kWh to match diverse power demands.
Integrated with an advanced Battery Management System (BMS), the battery provides real-time monitoring of voltage, current, and temperature, plus multi-layer protection (over-voltage/under-voltage/over-current/over-temperature/short-circuit) for safe operation. It features natural heat dissipation, a compact 19-inch 3U rack-mount structure, and standardized interfaces for seamless integration with inverters via CAN/RS485 communication (Bluetooth optional).
With IP20 dustproof protection, 5000 deep charge-discharge cycles, and international certifications, the CBLV 5120-B1 delivers long-lasting, stable performance for residential, small commercial, and industrial auxiliary energy storage scenarios.
Product Specification
Core Electrical Parameters
| Item | Specification |
|---|---|
| Cell Chemistry | Lithium Iron Phosphate (LFP) |
| Connection Mode | 1P15S |
| Rated Voltage | 48V |
| Working Voltage Range | 42V~54V |
| Rated Capacity | 100Ah |
| Rated Energy (Single Module) | 4.8kWh |
| Max Parallel Modules | 4 (Total energy: 19.2kWh) |
| Rated Charge/Discharge Current | 50A |
| Max Charge/Discharge Current | 100A |
| Internal Resistance | <30mΩ |
| Dissipation Mode | Natural dissipation |
| Communication Interface | CAN/RS485 (Bluetooth optional) |
Environmental & Safety Parameters
| Category | Parameter |
|---|---|
| Protection Grade | IP20 (indoor use only) |
| Operating Temperature | Charging: 0~55℃; Discharging: -20~60℃ |
| Storage Temperature | -10~35℃ |
| Working Humidity | 10%~95%RH (no condensation) |
| Working Altitude | <3000m (derating above 2000m) |
| Safety Protections | Over-voltage, under-voltage, over-current, over-temperature, short-circuit protection |
| Cycle Life | 5000 cycles (25℃, 0.5C/0.5C, 90%DOD, 80% residual capacity) |
Physical & Certification Details
| Item | Detail |
|---|---|
| Dimensions (WHD) | 480137460mm |
| Net Weight | 42kg (92.6lbs) |
| Installation Type | 19-inch 3U rack-mount (fits standard cabinets/brackets) |
| Certifications | UN 38.3, IEC 62619, CE |
| SOC Indicator | 4-LED lights (0~25%/26~50%/51~75%/76~100%) |
Product Application
Designed exclusively for indoor energy storage, the CBLV 5120-B1 is suitable for:
- Residential Energy Storage: Matches photovoltaic systems for self-use, peak shaving, and electricity cost reduction.
- Small Commercial Backup: Provides emergency power for shops, offices, and critical business loads.
- Industrial Auxiliary Power: Supplies stable energy for small workshops, production lines, and control systems.
- Off-grid Energy Systems: Powers remote residences, rural clinics, and outdoor workstations (with inverter).
- Customized Small-scale Projects: Modular parallel design supports tailored capacity for special energy storage needs.
Product Features
- Modular Scalability: Supports 1-4 modules in parallel, scaling capacity from 4.8kWh to 19.2kWh flexibly.
- Advanced BMS Protection: Real-time parameter monitoring and multi-dimensional safeguards prevent battery damage.
- Intuitive SOC Display: 4-LED indicator clearly shows power levels for easy status checks.
- Wide Inverter Compatibility: CAN/RS485 communication ensures seamless integration with mainstream inverters.
- Reliable LFP Core: Intrinsic safety, 5000-cycle life, and excellent temperature adaptability.
- Space-saving Installation: 19-inch 3U rack-mount design fits standard cabinets, saving indoor space.
- Global Certification Compliance: Meets UN 38.3, IEC 62619, and CE standards for global deployment.
- Simple Wiring & Maintenance: Standardized interfaces and natural heat dissipation reduce deployment efforts.
Product Advantage
- Long Service Life: 5000 deep cycles (80% residual capacity) lower replacement frequency and life-cycle costs.
- Flexible Capacity Matching: Modular parallel design allows on-demand expansion without full system replacement.
- Comprehensive Safety: BMS protection + LFP cell stability + IP20 design, ensuring safe indoor operation.
- Easy Deployment: Standard rack-mount design and clear wiring guidelines enable quick installation.
- Low Maintenance Cost: Routine maintenance only requires half-yearly supplementary charging.
- Stable Performance: Wide temperature adaptability and natural heat dissipation ensure reliable operation in various indoor environments.
- Global Market Access: International certifications support cross-border sales and application.
FAQ
Q1: What’s the maximum expandable capacity?
A: Single module is 4.8kWh; supports up to 4 modules in parallel, max 19.2kWh total energy.
Q2: Can it be used outdoors?
A: No, it has an IP20 protection grade, designed exclusively for indoor use—avoid moisture and direct sunlight.
Q3: What communication modes are supported?
A: Standard CAN and RS485; Bluetooth is optional for wireless monitoring.
Q4: What routine maintenance is required?
A: ① Supplementary charging every 6 months; ② Disconnect output if unused long-term (keep 45%-55% SOC); ③ Clean with a dry brush.
Q5: Why is discharge time shorter than expected?
A: Possible causes: low SOC, extreme temperature, overload, or aging. Charge fully, work within 10~35℃, reduce non-essential loads, or contact support.
Q6: Is it compatible with all inverters?
A: Compatible with most mainstream inverters via CAN/RS485; confirm protocol compatibility with our technical team.
Q7: What are the storage requirements?
A: Store indoors (25℃±5℃, RH ≤75%), 45%-55% SOC, ≥2m from heat sources; recharge every 6 months if stored over 90 days.
Q8: What wiring specifications are recommended?

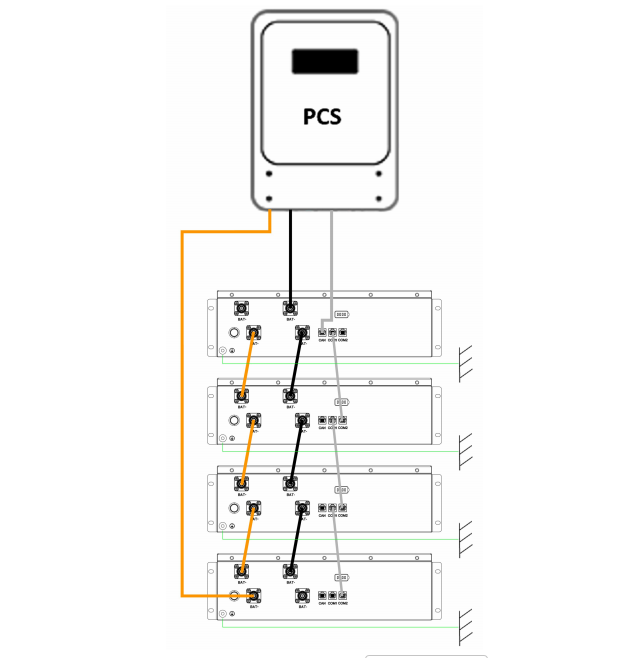

A: Single-module: 1/0 AWG (2000mm) for positive/negative wires; shielded cable for CAN communication. Parallel modules: 1/0 AWG (70mm) for inter-module wiring.
