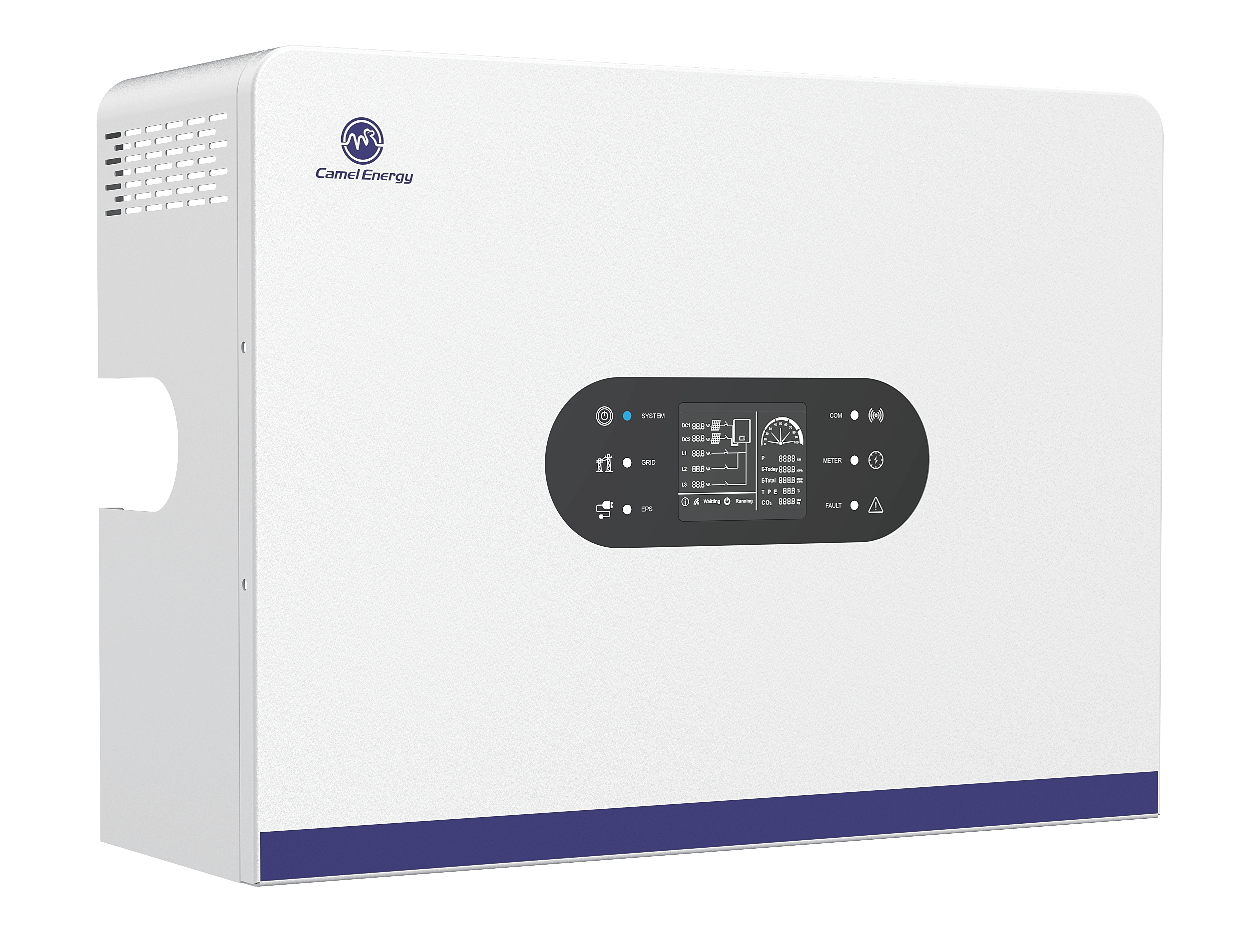

Camel Power Energy Storage Inverter Three Phase IP65 EPS Backup Residential Commercial
Product Details
| Item CPH4KTL CPH5KTL CPH6KTL CPH8KTL CPH10KTL CPH12KTL Rated Power | 4kW-8kW | Max PV Power | 6kW-12kW |
|---|---|---|---|
| MPPT Voltage | 200–850Vdc | Battery Voltage | 180–650Vdc |
| Weight | 30.6kg | Size | 580×425×213mm |
| Warranty | 5 Years | Product Name | Camel CPH Series Three-Phase Hybrid Inverter |
| Application | Off-grid System,Storage System,Home Appliance,Photovoltaic Pump,Solar System | Color | Blue,White |
| Protection Leve | IP65 | ||
| Highlight | camel power Energy Storage Inverter,IP65 EPS Backup,850Vdc three phase hybrid inverter |
||
Product Description
Camel CPH 4K/5K/6K/8K/10K/12KTL Three-Phase Hybrid Inverter | PV & Battery & EPS Backup
Camel CPH series three-phase hybrid inverter supports on-grid/off-grid/backup/EPS, 2 MPPT, WiFi monitoring, IP65, 4–12kW, compatible with LiFePO4 battery.
Quick Details
- Model Range: CPH4KTL / 5KTL / 6KTL / 8KTL / 10KTL / 12KTL
- Type: Three-Phase Hybrid Inverter
- PV Input: 2×MPPT, 200–850V, Max 1000Vdc
- Battery: LFP, 180–650V, 25A charge/discharge
- Grid: 400/380Vac, 50/60Hz
- EPS Backup: Full power unbalanced output
- Protection: IP65, natural cooling
- Communication: WiFi/GPRS, CAN/RS485
- Efficiency: Max 98.2%
- Certifications: CE, IEC
Product Description
Camel CPH series is a high-performance three-phase hybrid solar inverter for residential & small commercial energy storage systems. It integrates PV charging, battery energy storage, on-grid export, and EPS backup power in one unit. Supports 4 smart working modes and 100% three-phase unbalanced output. With IP65 protection, LCD display, and WiFi APP monitoring, it delivers stable, efficient, and flexible energy management for self-consumption, peak shaving, backup, and microgrid scenarios.
Product Specification
| Item | CPH4KTL | CPH5KTL | CPH6KTL | CPH8KTL | CPH10KTL | CPH12KTL |
|---|---|---|---|---|---|---|
| Rated Power | 4kW | 5kW | 6kW | 8kW | 10kW | 12kW |
| Max PV Power | 6kW | 7.5kW | 9kW | 12kW | 15kW | 15kW |
| MPPT Voltage | 200–850Vdc | 200–850Vdc | 200–850Vdc | 200–850Vdc | 200–850Vdc | 200–850Vdc |
| Battery Voltage | 180–650Vdc | 180–650Vdc | 180–650Vdc | 180–650Vdc | 180–650Vdc | 180–650Vdc |
| Max Charge/Discharge | 25A | 25A | 25A | 25A | 25A | 25A |
| Grid Voltage | 380/400Vac | 380/400Vac | 380/400Vac | 380/400Vac | 380/400Vac | 380/400Vac |
| Max Efficiency | 98.0% | 98.0% | 98.2% | 98.2% | 98.2% | 98.2% |
| Protection Level | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Dimension | 580×425×213mm | 580×425×213mm | 580×425×213mm | 580×425×213mm | 580×425×213mm | 580×425×213mm |
| Weight | 30.6kg | 30.6kg | 30.6kg | 30.6kg | 30.6kg | 30.6kg |
Product Application
- Residential three-phase solar & storage system
- Villa, farm, small factory energy management
- On-grid & off-grid hybrid power supply
- EPS backup power for critical loads
- Peak shaving & valley filling
- Microgrid & remote area power
- Commercial PV energy storage system
Product Features
- Four Smart Working Modes
General / Peak Shifting / Battery Backup / Microgrid
- Dual MPPT High Efficiency
2×MPPT, wide voltage, strong light adaptability
- EPS Uninterrupted Backup
100% unbalanced three-phase output, fast switch
- Full Safety Protection
Anti-island, leakage, insulation, over/under voltage
- IP65 Outdoor Design
Natural cooling, rain & dust resistant
- APP Remote Monitoring
WiFi/GPRS, real-time data, fault alarm
- BMS Compatibility
CAN/RS485, self-adapts to LFP batteries
- Smart Meter & Anti-Backflow
Support grid limiter & zero-export function
Product Advantage
- All-in-One Hybrid Design
Combines on-grid, off-grid, backup, storage in one
- Ultra-High Conversion Efficiency
Up to 98.2%, more power output
- Strong Load Compatibility
Drives inductive & capacitive loads stably
- Easy Installation & Maintenance
Wall-mount, compact, plug-and-play wiring
- Global Grid Compatibility
50/60Hz auto recognition, wide voltage range
- Long Life & Reliable
IP65, wide temp range (-25℃~60℃)
FAQ
Q1: What batteries are compatible?
A: LiFePO4 (LFP) battery, 180–650V, matched via CAN/RS485 BMS.
Q2: Can it work without grid?
A: Yes, supports Microgrid & EPS backup off-grid mode.
Q3: What is EPS backup function?
A: Provides uninterrupted power when grid fails, 100% unbalanced output.
Q4: Can I monitor remotely?
A: Yes, via PvPro APP (WiFi/GPRS) & web platform.
Q5: Is this inverter waterproof?
A: Yes, IP65 protection for indoor & outdoor shaded installation.
Q6: How many PV strings?
A: 2 strings, 2 MPPT, max 1000Vdc input.
Q7: Does it support peak shaving?
A: Yes, set peak/valley time via APP to save electricity cost.
Q8: What is the max efficiency?
A: Up to 98.2%, MPPT efficiency 99.9%.
