105Ah 12.8V LFP Battery 11KG Lithium Iron Ion Phosphate Battery

  • 105Ah 12.8V LFP Battery 11KG Lithium Iron Ion Phosphate Battery
Place of Origin China
Brand Name Camel Energy
Certification UN38.3
Model Number UT-1344B
Minimum Order Quantity 20 pcs
Price EXW 166USD
Packaging Details 1 pcs/carton
Delivery Time 35 working days
Payment Terms T/T、L/C、D/P
Supply Ability 5000 pcs/month
Product Details
Voltage 12.8V Capacity 105Ah
Weight 11KG Storage Range -5°C~35°C
Low Temperature Charging Heating Optional Cycle Life >3000 Times, 0.5C, 80% DOD 25°C
Protection Level IP65 Certification UN38.3, IEC 62619
Highlight

105Ah LFP Battery

,

12.8V Camel Energy

,

11KG ion phosphate battery
Leave a Message
Product Description

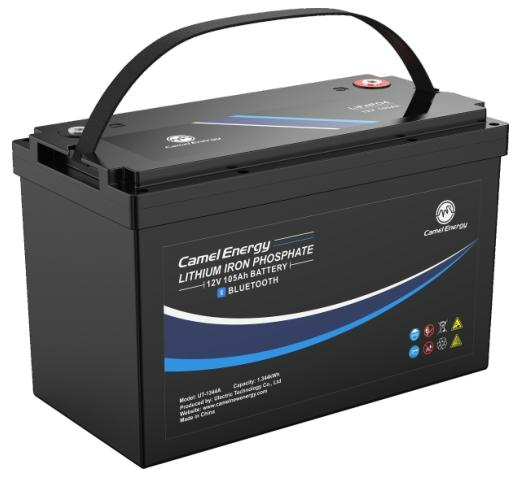

Camel Energy UT-1344B 12V 105Ah LFP Battery with 3000+ Cycles, IP65 Protection, and Optional Bluetooth Monitoring
Quick Detail
  • Brand: Camel Energy
  • Model: UT-1344B (12V 105Ah-G24)
  • Nominal Voltage: 12.8V
  • Nominal Capacity: 105Ah
  • Energy: 1344Wh
  • Cycle Life: >3000 cycles (0.5C, 80% DOD)
  • IP Rating: IP65
  • Certification: UN38.3
  • Terminal: M8 Threaded Studs
  • Dimensions (W*D*H): 256*165*210mm
  • Weight: 11kg
  • Bluetooth: Optional
  • Low‑temp Heating: Optional
  • Warranty: 36 Months
Product Description

Camel Energy UT-1344B is a 12V 105Ah G24‑size lithium iron phosphate battery designed for versatile mobile, off‑grid, and backup power scenarios. It features a rugged ABS housing, intelligent BMS, optional Bluetooth monitoring, and low‑temperature heating support. With IP65 protection, maintenance‑free design, and >3000 cycles, it provides safe, stable, and long‑life power for RVs, marine, solar storage, and industrial equipment.

Product Specification
Parameter Value
Nominal Voltage 12.8V
Nominal Capacity 105Ah
Energy 1344Wh
Dimensions (W*D*H) 256*165*210mm
Weight 11kg
Charge Cut-off Voltage 14.6V
Discharge Cut-off Voltage 10.8V
Max. Charge Current 105A
Max. Discharge Current 105A
Charge Temp 0°C~55°C
Discharge Temp -20°C~60°C
Storage Temp -5°C~35°C
BMS Protection Over/under voltage, over/low temp, short circuit, cell balancing
Low-temp Heating ≤0°C auto start; >5°C auto stop (optional)
Bluetooth Real-time voltage/current/temp/SOC monitoring (optional)
IP Rating IP65
Certification UN38.3
Cycle Life >3000 cycles (0.5C, 80% DOD)
Package Battery*1, Manual*1, M8*12mm*2
Product Application
  • RVs, campers, caravans
  • Marine / yachts / small boats
  • Off‑grid solar energy storage
  • Backup power for small systems
  • Outdoor equipment & lighting
  • Golf carts & utility vehicles
  • Medical devices & test instruments
Product Features
  1. G24 Standard Size – Direct replacement for lead‑acid batteries
  2. High Cycle Life – >3000 cycles at 0.5C 80% DOD
  3. Smart BMS – Full protection + automatic cell balancing
  4. IP65 Waterproof & Dustproof – For harsh indoor/outdoor use
  5. Optional Low‑temp Heating – Enables charging at -20~0°C
  6. Optional Bluetooth Monitoring – Mobile APP real‑time status
  7. Multiple Operating Modes – Charge / discharge / standby / sleep
  8. UN38.3 Certified – Safe for transportation
Product Advantage
  • Lighter & smaller than lead‑acid batteries
  • Maintenance‑free, no watering required
  • Stable discharge, no voltage drop
  • Wide temperature adaptability (-20°C~60°C)
  • Safe LFP chemistry, no fire/explosion risk
  • Low self‑discharge & long standby
  • 36‑month manufacturer warranty
  • Easy installation with M8 terminals
FAQ
Q1: How to check battery status?

A: Use the optional Bms Blue Tooth APP to view SOC, voltage, current, and temperature in real time.

Q2: How does low‑temperature heating work?

A: Heating turns on automatically at ≤0°C (with external power) and turns off at >5°C to ensure normal charging.

Q3: How to connect Bluetooth?

A: Activate the battery → download APP → scan QR code on battery → connect and view data.

Q4: How to wake from sleep mode?

A: Apply charging voltage ≥12.8V or discharge current >800mA.

Q5: What to do if the battery shuts down?

A: Recharge with ≥12.8V to reactivate after low‑voltage shutdown.

Q6: Can I charge and discharge at the same time?

A: No, this is prohibited to avoid damage and hazards.

Q7: What are storage requirements?

A: Store at 15–35°C, recharge every 3 months, avoid direct sunlight and heat sources.

Q8: What is the warranty coverage?

A: 36‑month warranty for failures under proper use; excludes improper operation, disassembly, or damage.
