48V 150Ah Lithium Ion Battery Module 7.2kWh LiFePO4 Parallel Design 3000 Cycles
Product Details
| Voltage | 48V | Capacity | 150Ah (7.2kWh) |
|---|---|---|---|
| Parallel | Up To 4 Modules (max 28.8kWh) | Communication | CAN / RS485 |
| Protection | IP20, 19-inch 4U Rack-mount | Cycle Life | 3000 Cycles |
| Highlight | 48V 150Ah lithium ion battery module,lithium ion battery module 7.2kWh,LiFePO4 Battery Module 3000 Cycles |
||
Product Description

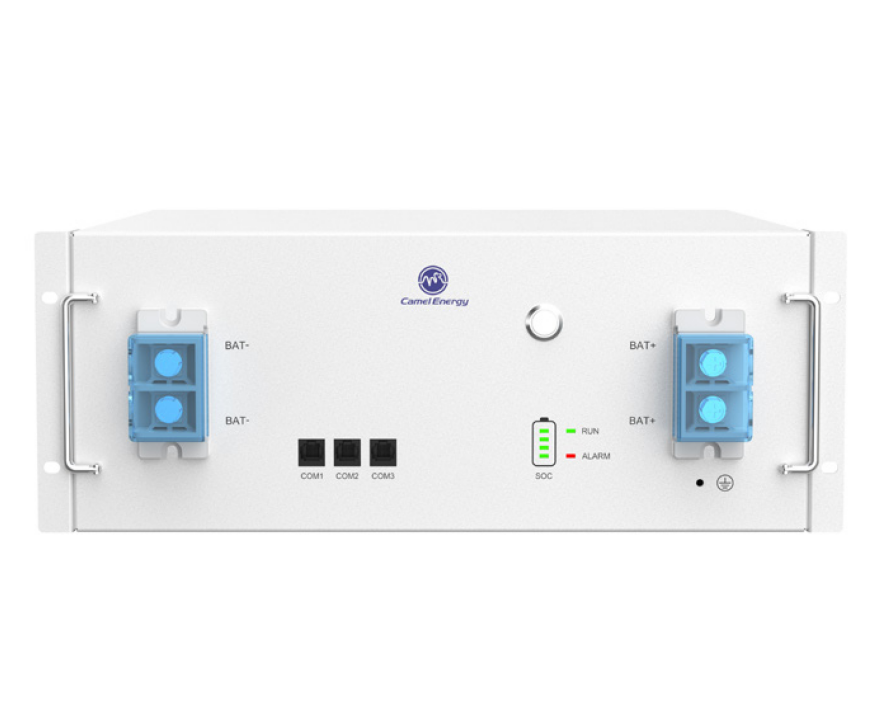

CBLV 7200 | 48V 150Ah LiFePO4 Battery Module
Professional 48V Residential & Commercial Energy Storage Battery
Quick Details
- Model: CBLV 7200 (48150)
- Type: LiFePO4 (LFP)
- Nominal Voltage: 48V
- Rated Capacity: 150Ah
- Energy: 7.2kWh
- Parallel: Up to 4 modules (max 28.8kWh)
- Communication: CAN / RS485
- Protection: IP20, 19-inch 4U rack-mount
- Certifications: UN 38.3, IEC 62619, CE
- Cycle Life: 3000 cycles
Product Description
CBLV 7200 is a 48V 150Ah lithium iron phosphate energy storage battery designed for off‑grid, backup, and solar self‑consumption systems. It supports parallel expansion up to 4 units, integrates intelligent BMS for full protection, and uses standard 19‑inch rack mounting for easy installation. Stable, safe, and long‑cycle, it is widely used in home energy storage, small commercial systems, and backup power applications.
Product Specification
| Item | Specification |
|---|---|
| Model | CBLV 7200 |
| Cell Type | LiFePO4 (LFP) |
| Configuration | 1P15S |
| Nominal Voltage | 48V |
| Working Voltage | 42V ~ 54V |
| Rated Capacity | 150Ah |
| Rated Energy | 7.2kWh |
| Rated Charge/Discharge Current | 50A |
| Max Charge/Discharge Current | 100A |
| Parallel Quantity | 1 ~ 4 modules |
| Cycle Life | 3000 cycles (25℃, 0.5C, 90%DOD, 70% capacity remaining) |
| Dimension (W×H×D) | 482 × 180 × 488 mm |
| Weight | 60 kg |
| Internal Resistance | < 30 mΩ |
| Cooling | Natural cooling |
| Protection Degree | IP20 |
| Working Temp. (Charge) | 0℃ ~ +55℃ |
| Working Temp. (Discharge) | -20℃ ~ +60℃ |
| Storage Temp. | -10℃ ~ +35℃ |
| Humidity | 10% ~ 95% RH (non‑condensing) |
| Protection Functions | Over‑voltage, Under‑voltage, Over‑current, Over‑temp, Short circuit, Reverse connection |
| Communication | CAN / RS485 |
| Certifications | UN 38.3, IEC 62619, CE |
Product Application
- Home solar energy storage systems
- Off‑grid and hybrid power systems
- Backup power for residences & small businesses
- RV, caravan, and marine energy supply
- Small industrial & commercial energy storage
- Microgrid & emergency EPS power
Product Features
- 48V 150Ah LFP Chemistry
Safe, stable, long life, low self‑discharge.
- Parallel Expandable
Support 1–4 modules in parallel, up to 28.8kWh.
- Intelligent BMS Protection
Full electrical and thermal safety protection.
- Standard Rack Mount
19‑inch 4U size for cabinet installation.
- Dual Communication
CAN & RS485 for inverter compatibility.
- LED Status Indication
SOC, Run, Alarm visible at a glance.
Product Advantage
- High Safety
LiFePO4 cell + multi‑level BMS protection.
- Flexible Capacity
Parallel design to match different energy demands.
- Easy Integration
Compatible with mainstream 48V inverters.
- Long Cycle Life
3000 cycles for low total cost of ownership.
- Simple Installation
Rack mount, clear wiring, professional interface.
- Global Certifications
Meet international transportation & safety standards.
FAQ
1. What is the model and energy of this battery?
Model: CBLV 7200 (48150); Energy: 7.2kWh.
2. How many batteries can be connected in parallel?
Up to 4 modules (max 28.8kWh).
3. What communication protocols are supported?
CAN and RS485, compatible with most 48V inverters.
4. What is the working voltage range?
42V ~ 54V.
5. What are the dimensions and weight?
482×180×488mm; Weight: 60kg.
6. What certifications does it have?
UN 38.3, IEC 62619, CE.
7. What is the cycle life?
3000 cycles (25℃, 0.5C, 90%DOD).
8. Can it be used outdoors?
No, it is IP20 indoor use only.
