5.015MWh Liquid Cooled Battery 1500V Energy Storage Battery Pack Lithium Ion
Product Details
| Working Temp. (Charge) | 0℃～55℃ | Working Temp. (Discharge) | -30℃～55℃ |
|---|---|---|---|
| Nominal Voltage | 166.4VDC | Charge Cut-off Voltage | 189.8V |
| Discharge Cut-off Voltage | 130V | Nominal Capacity | 314Ah |
| Rated Energy | 52.249kWh | Cycle Life | ≥6000 Cycles (25±3℃, 0.5P, 95%DOD, 80% SOH EOL) |
| Highlight | 5.015MWhLiquid Cooled Battery,Energy Storage Battery Pack 1500V,166.4VDC liquid cooled lithium ion battery |
||
Product Description

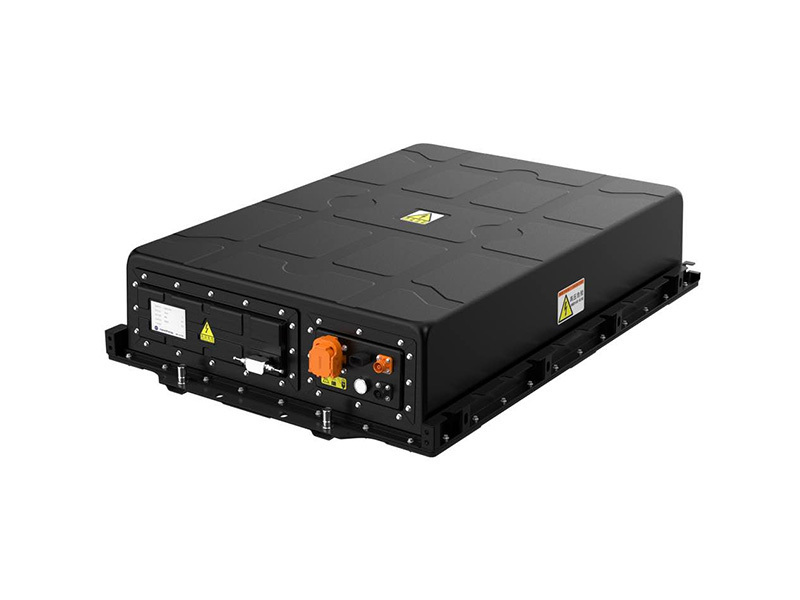

5.015MWh Liquid-Cooled Energy Storage Battery Pack
Professional High-Voltage Liquid-Cooled Energy Storage Solution for Utility & Industrial Scenarios
Quick Details
- Model: 5.015MWh 1500V Liquid-Cooled Energy Storage Battery Pack
- Configuration: 1P52S, 3.2V/314Ah LFP cell
- Nominal Voltage: 166.4V
- Rated Energy: 52.249kWh
- Cooling: Liquid cooling
- Protection: IP55 (system), IP67 (MSD)
- Cycle Life: ≥6000 cycles @0.5P, 95%DOD
- Dimension: 1140±5×790±5×244±3mm
- Weight: 326±5kg
- Certifications: Comply with GB, IEC, EN standards
Product Description
This liquid-cooled energy storage battery pack is a high-performance, high-reliability LFP module designed for 1500V high-voltage energy storage systems. It adopts integrated liquid-cooled thermal management, multi-level safety protection, and high-precision BMS sampling to achieve stable operation with cell temperature difference ≤3℃ and energy efficiency ≥95%.
It supports modular cluster integration, is suitable for 20ft non-walk-in container solutions, and provides long-cycle, safe, and maintenance-friendly energy storage core components for large-scale industrial & commercial energy storage, power-side energy storage, and grid-side peaking regulation.
Product Specification
| Item | Details |
|---|---|
| Cell Type | 3.2V/314Ah LFP |
| Configuration | 1P52S |
| Nominal Voltage | 166.4VDC |
| Charge Cut-off Voltage | 189.8V |
| Discharge Cut-off Voltage | 130V |
| Nominal Capacity | 314Ah |
| Rated Energy | 52.249kWh |
| Standard Charge/Discharge Rate | 0.5P |
| Cycle Life | ≥6000 cycles (25±3℃, 0.5P, 95%DOD, 80% SOH EOL) |
| Self-Discharge Rate | ＜3%/month |
| Cooling Method | Liquid cooling |
| Working Temp. (Charge) | 0℃～55℃ |
| Working Temp. (Discharge) | -30℃～55℃ |
| Dimension (W×D×H) | 1140±5 × 790±5 × 244±3 mm |
| Weight | 326±5 kg |
| MSD | 400A, IP67 |
| Withstand Voltage | AC 3100V / DC 4380V (60s, leakage ≤10mA) |
| Insulation Resistance | ≥100MΩ (DC 2500V, 60s) |
| NTC | 10K±1% 3435K, 30 sensors |
Product Application
- Grid-side energy storage & peak shaving
- Industrial & commercial demand-side response
- Renewable energy (solar/wind) consumption
- Power station capacity & frequency regulation
- Microgrid & off-grid power stations
- Large-scale integrated energy storage plants
Product Features
- 1500V High-Voltage Compatibility
Meet insulation, clearance, and creepage distance requirements for high-voltage systems.
- Efficient Liquid Cooling
Precise temperature control, cell temperature difference ≤3℃, high heat dissipation efficiency.
- High Safety Design
Built-in fire composite detector, fuse protection, multi-level safety interlock.
- High Consistency & Long Life
Strict cell sorting & matching, stable performance, ≥6000 cycles.
- Modular & Integrated
Standardized design, easy for cluster series-parallel connection and O&M.
- High-Precision BMS Sampling
52-channel voltage & 30-point temperature monitoring, passive balancing.
Product Advantage
- Superior Thermal Performance
Liquid cooling ensures stable temperature and extends service life under high-rate operation.
- High Safety & Reliability
Pack‑level fire detection & suppression, electrical protection, anti‑corrosion design.
- High System Compatibility
Match 1500V PCS, support dual-branch cluster parallel, flexible system expansion.
- High Energy Efficiency
Energy efficiency ≥95%, low self-discharge, optimized operating cost.
- Stable in Harsh Environments
IP55 protection, anti‑seismic, anti‑corrosion, suitable for high‑altitude & severe environments.
- Easy Installation & Maintenance
Drawer structure, standardized interface, reduced on‑site workload.
FAQ
1. What is the cell specification?
3.2V/314Ah LFP cell, cycle life ≥6000 cycles.
2. What cooling method is used?
Liquid cooling with ethylene glycol aqueous solution, temperature difference ≤3℃.
3. What is the nominal voltage and energy?
166.4V, 52.249kWh per pack.
4. Can it be used in 1500V systems?
Yes, fully compliant with 1500V high‑voltage insulation and safety standards.
5. What protection functions are included?
Over/under voltage, over current, over/under temperature, short circuit, insulation monitoring, PACK‑level fire detection.
6. What is the operating temperature range?
Charge: 0–55℃; Discharge: -30–55℃.
7. What is the weight and size?
Weight: 326±5kg; Size: 1140×790×244mm.
8. What communication does BMS support?
CAN, daisy‑chain; compatible with cluster BCU and system BAU.
