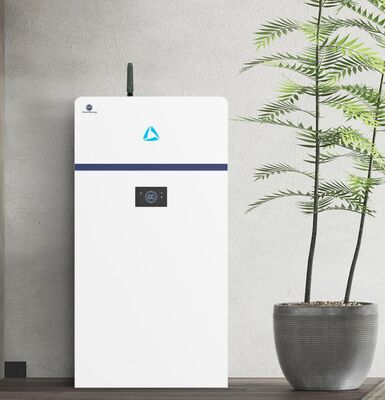

Residential Energy Storage System Dual MPPT Modular IP65 Home Solar Power Battery System

• Model Range: CSPH 3600 / CSPH 5000 / CSPH 6000 (single‑phase)
• Battery: Camel B10 LiFePO4 (9.48kWh, expandable to 4 packs)
• PV Input: Dual MPPT, 100–580VDC, max 9000W
• Rated Output: 3.6kW / 5kW / 6kW (230Vac, 50/60Hz)
• Protection: IP65, wall‑mounted, natural cooling
• Communication: WiFi, RS485, CAN, BMS
• Certifications: CE, IEC62109‑1/‑2, EN61000‑6‑1/‑2/‑3/‑4, AS4777.2‑2020, VDE4105
• Application: Residential, backup power, self‑consumption

Camel Intel 10 single‑phase hybrid energy storage system integrates PV inverter, lithium battery and intelligent management in one unit. It supports on‑grid/off‑grid seamless switching, realizes high solar self‑consumption and reliable backup power. With modular design, it supports 1–4 Camel B10 batteries in parallel. Equipped with dedicated APP for real‑time monitoring, mode setting and fault diagnosis, it is ideal for household energy independence, peak‑valley arbitrage and emergency power supply.

• Residential single‑phase solar + storage systems
• Household solar self‑consumption optimization
• Uninterrupted backup power for home loads
• Peak‑valley electricity price arbitrage
• Small commercial & light industrial single‑phase power supply
• DC‑coupled / AC‑coupled / hybrid‑coupled PV systems
• Unstable grid or off‑grid remote areas

1. 5 Smart Operating Modes

   Backup, Self‑consumption, Time of Use (TOU), Energy Scheduling, External Control.

2. Dual MPPT Technology

   Wide PV voltage input, high tracking efficiency, strong adaptability.

3. Seamless Off‑grid Switch

   Automatic backup when grid fails, no power interruption.

4. Modular & Scalable

   1–4 Camel B10 batteries parallel, capacity up to 37.92kWh.

5. APP Remote Control

   Real‑time data, alarm, parameter setting, power station management.

6. Full Safety Protection

   Over/under voltage, over current, over temp, insulation, leakage, anti‑islanding.

7. IP65 Outdoor Design

   Dustproof, waterproof, natural cooling, wide temperature tolerance.

8. Easy Wall‑Mount Installation

   Simple wiring, low maintenance, space‑saving.

1. All‑in‑One Integration

   Simplified wiring, reduced space, lower installation cost.

2. High Stability & Safety

   LiFePO4 battery, multi‑protection, industrial‑grade reliability.

3. Max Energy Saving

   High PV self‑use rate, reduce grid electricity cost.

4. Strong Compatibility

   Adapt to mainstream PV modules, global grid standard compliance.

5. Intelligent O&M

   APP monitoring, automatic fault alarm, low after‑sales cost.

6. Global Certifications

   Meet EU, Australia, Germany and other international standards.

A: Supports 1–4 Camel B10 batteries in parallel, max 37.92kWh.

A: Yes, it automatically switches to off‑grid mode to supply loads by PV and battery.

A: Via Camel Storage APP (WiFi), real‑time data, alarm and remote control.

A: Wall‑mounted; keep ≥300mm clearance on sides/top, ≥100mm front for heat dissipation.

A: DC reverse connection, over/under voltage, over current, over temp, insulation monitoring, leakage protection, anti‑islanding.

A: Inverter: ‑25℃ to 60℃; Battery: ‑10℃ to 50℃ (derate at high temperature).

A: Low maintenance; clean dust semiannually, check cables, calibrate SOC every 2 weeks.

A: Yes, IP65 protection, can be installed indoor or outdoor with shade.
