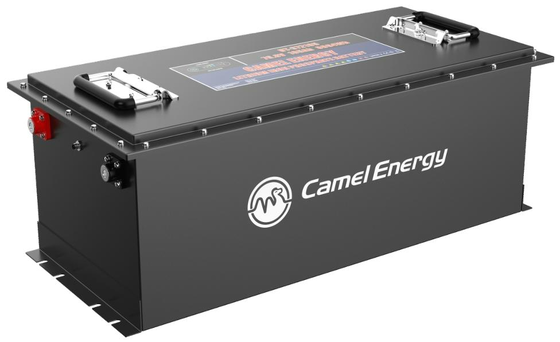

76.8V 105Ah Golf Cart Batteries Lithium Golf Cart Battery Deep Cycle 4000+ Cycle
Product Details
| Voltage | 72V | Capacity | 105Ah |
|---|---|---|---|
| Storage Range | -5℃~35℃ | Communication | RS485/Bluetooth |
| Cycle Life | >4000 Times, 0.5C, 80% DOD 25°C | Protection Level | IP65 |
| Highlight | 76.8V golf cart batteries,72V 105Ah golf cart batteries,4000+ C deep cycle golf cart battery |
||
Product Description
UT-S72105 76.8V 105Ah Lithium Golf Cart Battery with 4000+ Cycle Life
Quick Detail
- Brand: Camel Energy
- Model: UT-S72105
- Nominal Voltage: 76.8V
- Nominal Capacity: 105Ah
- Cycle Life: >4000 cycles (0.5C, 80% DOD, 25°C)
- IP Rating: IP65
- Certification: UN38.3
- Communication Port: CAN
- Terminal Type: M8-1.25 Threaded Studs
- Net Weight: 66kg
- Warranty: 36 Months
- Matching Monitor: GC MONITOR (sold separately)
Product Description
Camel Energy UT-S72105 is a high-voltage, high-performance lithium battery pack tailored for heavy-duty, high-power industrial and commercial equipment scenarios. Featuring a nominal 76.8V voltage and 105Ah capacity, it delivers outstanding high-current discharge performance, integrated with intelligent power management, multi-dimensional safety protection and professional connectivity solutions.
Equipped with 4-level SOC LED status indicators, a CAN communication port and Bluetooth connectivity via the Battery Track APP, the battery enables real-time monitoring of core operating parameters (voltage, temperature, SOC) and one-click firmware upgrades. Its IP65 dust and water resistance rating ensures stable operation in harsh outdoor and industrial environments, while the automatic shallow/deep sleep mode optimizes idle energy consumption and extends the battery’s service life. Certified to UN38.3 and backed by a 36-month official warranty, it complies with international transportation and safety standards, providing a reliable, long-lasting high-voltage power solution for heavy-duty professional applications.
Product Specification
| Parameter | Value |
|---|---|
| Nominal Voltage | 76.8V |
| Nominal Capacity | 105Ah |
| Recommended Charge Current | 50A |
| Recommended Charge Voltage | 82V~84V |
| Charge Voltage Cut-off | 84V |
| Discharge Voltage Cut-off | 67.2V |
| Max. Continuous Discharge Current (25°C) | 130A |
| Max. Pulse Discharge Current (15s,25°C) | 250A |
| Max. Instantaneous Discharge Current (8s,25°C) | 350A |
| Cycle Life | >4000 cycles (0.5C,80% DOD,25°C) |
| Recommended Charge Temperature | 0°C~55°C |
| Recommended Discharge Temperature | -20°C~60°C |
| Storage Temperature | -5°C~35°C |
| Weight | 66kg |
| Dimensions (W*D*H) | 660*320*245mm |
| Protection Recovery | Button |
| IP Rating | IP65 |
| Certification | UN38.3 |
| Terminal Configuration | M8-1.25 Threaded Studs |
| Communication Port | CAN |
| Packing List | Battery1, User Manual1, M812mm2, OT Terminal*2 |
Product Application
UT-S72105 is a high-voltage, high-power lithium battery designed for heavy-duty, high-load professional equipment scenarios, with wide applications in:
- Heavy Industrial Handling: High-load electric forklifts, heavy-duty AGVs, port/warehouse bulk cargo handling equipment
- High-power Electric Mobility: Heavy-duty electric sightseeing cars, industrial high-voltage patrol vehicles, large low-speed electric working vehicles
- Industrial & Construction Machinery: Large-scale industrial cleaning equipment, heavy construction auxiliary machinery, high-power outdoor engineering testing instruments
- Energy Storage & Backup Power: Medium and large commercial energy storage systems, high-power communication base station backup power, industrial emergency rescue mobile power stations
- Marine & Outdoor Heavy Equipment: Medium and large marine auxiliary power equipment, heavy-duty outdoor operation power supply, construction site high-power mobile power equipment
Product Features
- High-voltage High-power Discharge: 130A continuous, 250A 15s pulse and 350A 8s instantaneous discharge, perfectly meeting the power demands of heavy-duty high-load equipment.
- Intelligent SOC Monitoring: 4-level blue LED indicators for real-time visual capacity display; precise parameter monitoring and data tracking via the Battery Track Bluetooth APP.
- Smart Power Management: Standard/hibernation/sleep modes with automatic shallow sleep (30mins inactivity) and deep sleep (4 days shallow sleep) switching, minimizing idle energy loss.
- Harsh Environment Adaptability: IP65 dust and water proof rating; wide temperature operation range (-20°C~60°C discharge, 0°C~55°C charge) for complex industrial and outdoor conditions.
- Comprehensive Safety Protection: Button-type protection recovery; built-in over-voltage, over-temperature, over-current and short-circuit protection mechanisms for all-round safety.
- Professional Dual Connectivity: CAN communication port for seamless integration with industrial automation systems; Bluetooth for mobile APP control and convenient firmware upgrades.
- Certified Reliability: UN38.3 certified for international transportation safety; strict manufacturing and testing standards ensure stable and consistent performance.
- Long Service Life: Over 4000 charge-discharge cycles under standard working conditions, ensuring excellent long-term cost-effectiveness.
Product Advantage
- Superior Cycle Life: >4000 cycles at 0.5C/80% DOD/25°C, significantly reducing battery replacement frequency and overall operating costs for heavy-duty equipment.
- Stable High-voltage Output: Consistent 76.8V nominal voltage with no sudden power drop, ensuring continuous and efficient operation of high-voltage heavy-load equipment.
- Easy Operation & Maintenance: One-button start/stop and protection recovery; APP remote monitoring, parameter viewing and firmware upgrade, simplifying daily management and maintenance.
- Strong Environmental Compatibility: IP65 dust and water resistance and wide temperature adaptability, suitable for dusty, humid, high/low temperature industrial and outdoor working environments.
- Rigorous Safety Compliance: UN38.3 international certification and multi-layer safety protection mechanisms, completely eliminating risks of fire, explosion and short circuit.
- Flexible Industrial Integration: Standard M8-1.25 threaded terminals for quick and stable connection; CAN port for seamless docking with industrial automation and control systems.
- Assured After-sales Support: 36-month official warranty for proper operation and installation, with professional technical support and maintenance services provided by the manufacturer.
- Optimized Energy Efficiency: Automatic sleep mode activation effectively reduces idle energy consumption, extending the battery’s standby time for off-work heavy-duty equipment.
- Robust Structural Design: Solid build with 66kg weight and fixed dimensions (660320245mm), resistant to mild mechanical vibration and impact in industrial and outdoor scenarios.
FAQ
Q1: How to check the remaining capacity of the UT-S72105 battery?
A: The battery is equipped with 4 blue SOC LED indicators: 4 LEDs for 76%-100% capacity remaining, 3 LEDs for 51%-75%, 2 LEDs for 26%-50%, 1 LED for 0%-25%. Real-time SOC and other core operating parameters can also be viewed via the Battery Track Bluetooth APP.
Q2: How to wake up the battery from sleep mode?
A: Shallow sleep mode is activated after 30 mins of inactivity (no CAN/current signal, no key press, no alarms). It can be woken up via one key press, CAN message, or current load (≥1A). Deep sleep mode is activated after 4 days of shallow sleep, and can only be woken up by long-pressing the status button until all indicators light up from left to right.
Q3: What is the process to connect the battery to the Battery Track APP?
A: 1. Download "Battery Track" from Google Play (Android) or App Store (iOS); 2. Turn on your phone's Bluetooth and open the APP; 3. Click "Scan Bluetooth", select the battery's Bluetooth code, enter the default password 123456 to complete the connection.
Q4: What are the key storage requirements for the UT-S72105 battery?
A: Store the battery at 15°C~35°C with 5%~95%RH (no condensation); avoid direct sunlight and keep at least 2 meters away from heat sources; do not invert the battery or subject it to mechanical impact/heavy pressure. Replenish charge every 3 months and fully recharge within 6 months of storage to maintain optimal battery performance and service life.
Q5: Does the UT-S72105 support simultaneous charging and discharging?
A: No. This product does not support simultaneous charging and discharging. Such operation is strictly prohibited to avoid battery damage, performance degradation and potential safety risks.
Q6: How to restore the battery after the protection mechanism is triggered?
A: When the battery triggers protection due to over-voltage, over-temperature, over-current or other faults, press the status/protection recovery button to restore normal operation. If the fault persists, stop using the battery immediately and contact Camel Energy’s after-sales service for professional inspection.
Q7: What monitor is compatible with the UT-S72105 battery?
A: The battery is exclusively matched with GC MONITOR (sold separately), which can be connected for professional and comprehensive real-time monitoring of the battery’s operating status and data tracking.
Q8: What is the scope of the 36-month warranty for this battery?
A: The 36-month warranty (counting from the purchase date) covers problems caused by proper operation and standard installation. It does not cover damage from improper operation/installation, mechanical impact, heavy pressure, or products without a warranty card. Out-of-warranty maintenance services are available at the customer's expense.
Q9: What cables and terminals should be used for battery connection?
A: Please use original or certified cables and the equipped M8-1.25 threaded studs/OT terminals for connection. Mismatched, uncertified or inferior accessories may cause poor contact, overheating and other serious safety hazards.
Q10: How to upgrade the battery system firmware via the Bluetooth APP?
A: After connecting the battery to the Battery Track APP, if the prompt "Click Update to: xxxxxx" appears, click "UPDATE NOW". Do not exit or switch the APP page during the upgrade process and wait until the upgrade progress reaches 100% completion to ensure the upgrade is successful.
