3000 Times LFP Battery Lithium Iron Phosphate Batteries Inverter 210ah UN38.3
Product Details
| Voltage | 25.6V | Capacity | 210Ah |
|---|---|---|---|
| Weight | 38.5KG | Storage Range | -5°C~35°C |
| Low Temperature Charging Heating | Optional | Cycle Life | >3000 Times, 0.5C, 80% DOD |
| Protection Level | IP65 | Certification | UN38.3, IEC 62619 |
| Highlight | 3000 times LFP Battery,UN38.3 lithium iron phosphate batteries,inverter battery 210ah UN38.3 |
||
Product Description

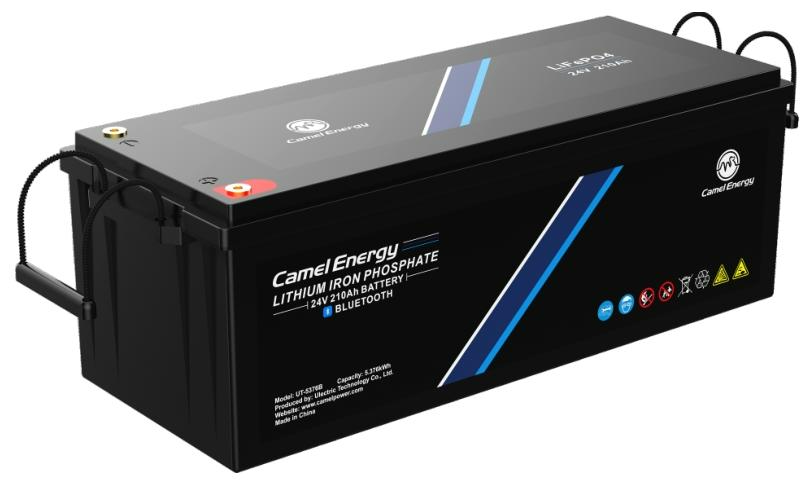

Camel Energy UT-5376B 5376Wh Energy 3000+ Cycles IP65 Waterproof LFP Lithium Iron Phosphate Battery
Quick Detail
- Brand: Camel Energy
- Model: UT-5376B
- Nominal Voltage: 25.6V
- Nominal Capacity: 210Ah
- Energy: 5376Wh
- Cycle Life: >3000 cycles (0.5C, 80% DOD)
- IP Rating: IP65
- Certification: UN38.3
- Terminal: M8 Threaded Studs
- Weight: 38kg
- Bluetooth: Optional
- Low‑temp Heating: Optional
- Warranty: 36 Months
Product Description
Camel Energy UT-5376B is a 25.6V high‑capacity lithium iron phosphate battery designed for 24V‑class large off‑grid, marine, RV, and backup power systems. It features rugged ABS housing, intelligent BMS, optional Bluetooth monitoring, and low‑temperature heating. With IP65 protection, high current capability, and long cycle life, it provides safe, stable, long‑life power for heavy‑duty 24V applications.
Product Specification
| Parameter | Value |
|---|---|
| Nominal Voltage | 25.6V |
| Nominal Capacity | 210Ah |
| Rated Energy | 5376Wh |
| Weight | 38kg |
| Dimension (W*D*H) | 640*245*220mm |
| Charge Cut-off Voltage | 29.2V |
| Discharge Cut-off Voltage | 21.6V |
| Max. Charge Current | 105A |
| Max. Discharge Current | 105A |
| Recommended Charge Temp | 0°C~55°C |
| Recommended Discharge Temp | -20°C~60°C |
| Storage Temperature | -5°C~35°C |
| BMS Protection | Over/under voltage, over/low temp, short circuit, auto cell balancing |
| Low-temp Heating (Optional) | ≤0°C auto start; >5°C auto stop |
| Bluetooth Monitoring | Optional |
| IP Rating | IP65 |
| Certification | UN38.3 |
| Cycle Life | >3000 cycles |
Product Application
- 24V large RVs & yachts
- 24V off‑grid solar energy storage
- 24V backup power & base stations
- Outdoor heavy‑duty equipment
- Industrial & marine deep‑cycle systems
Product Features
- 25.6V Stable Output – Perfect for standard 24V power systems
- Ultra‑high Capacity – 210Ah for long‑duration working
- High Current Support – 105A max charge/discharge
- Smart BMS – Full protection + automatic cell balancing
- IP65 Waterproof & Dustproof – For harsh environments
- Optional Low‑temp Heating – Charging available at -20~0°C
- Optional Bluetooth – Real‑time APP status monitoring
- UN38.3 Certified – Safe for global transportation
Product Advantage
- Higher energy density, lighter than lead‑acid batteries
- Maintenance‑free, no watering or regular maintenance
- Stable voltage, no sudden drop during discharge
- Wide temperature range: -20°C~60°C discharge
- Safe LFP chemistry, no thermal runaway risk
- Low self‑discharge, long standby time
- Standard M8 terminals for easy installation
- 36‑month official manufacturer warranty
FAQ
Q1: How to monitor battery status in real time?
A: Use the optional Bms Blue Tooth APP to view SOC, voltage, current, and temperature.
Q2: How does the low‑temperature heating function work?
A: Heating activates automatically at ≤0°C (with external power) and stops at >5°C to ensure normal charging.
Q3: How to wake the battery from sleep mode?
A: Apply charging voltage ≥25.6V or discharge current >800mA.
Q4: What to do if the battery shuts down due to low voltage?
A: Reactivate by connecting a charger with voltage ≥25.6V.
Q5: Does the battery support simultaneous charging and discharging?
A: No, this operation is strictly prohibited.
Q6: What are the recommended storage conditions?
A: Store at 15–35°C, recharge every 3 months, avoid direct sunlight and heat sources.
Q7: What does the 36‑month warranty cover?
A: Covers defects under proper operation and installation; excludes improper use, disassembly, or physical damage.
