25.6V LFP Battery Lifepo4 105ah Lithium Iron Phosphate Power Station
Product Details
| Voltage | 25.6V | Capacity | 105Ah |
|---|---|---|---|
| Weight | 20KG | Storage Range | -5°C~35°C |
| Low Temperature Charging Heating | Optional | Cycle Life | >3000 Times, 0.5C, 80% DOD 25°C |
| Protection Level | IP65 | Certification | UN38.3, IEC 62619 |
| Highlight | 25.6V LFP Battery,25.6V lifepo4 105ah,20KG lithium iron phosphate power station |
||
Product Description

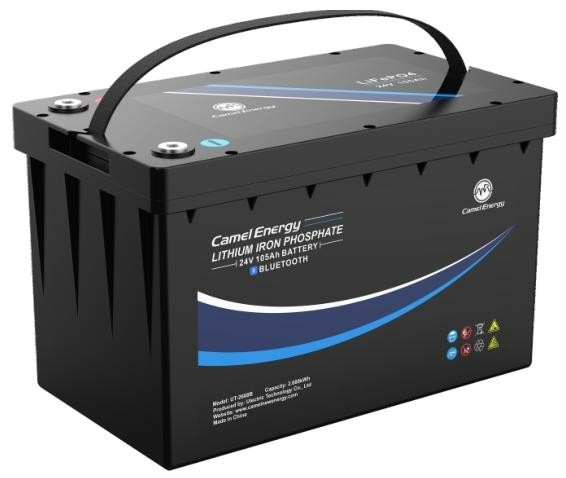

Camel Energy UT-2688B 105Ah Capacity LFP Battery with IP65 Protection and 3000+ Cycles for RVs and Solar Systems
Quick Detail
- Brand: Camel Energy
- Model: UT-2688B
- Nominal Voltage: 25.6V
- Nominal Capacity: 105Ah
- Energy: 2688Wh
- Cycle Life: >3000 cycles (0.5C, 80% DOD)
- IP Rating: IP65
- Certification: UN38.3
- Terminal: M8 Threaded Studs
- Dimensions (W*D*H): 363*212*230mm
- Weight: 20kg
- Bluetooth: Optional
- Low‑temp Heating: Optional
- Warranty: 36 Months
Product Description
Camel Energy UT-2688B is a 25.6V high‑performance lithium iron phosphate battery designed for 24V‑class mobile, off‑grid, and backup power scenarios. It features a rugged ABS housing, intelligent BMS, optional Bluetooth monitoring, and low‑temperature heating support. With IP65 protection, high current capability, maintenance‑free design, and long cycle life, it provides safe, stable, long‑life power for RVs, marine, solar systems, and industrial equipment.
Product Specification
| Parameter | Value |
|---|---|
| Nominal Voltage | 25.6V |
| Nominal Capacity | 105Ah |
| Rated Energy | 2688Wh |
| Dimensions (W*D*H) | 363*212*230mm |
| Weight | 20kg |
| Charge Cut-off Voltage | 29.2V |
| Discharge Cut-off Voltage | 21.6V |
| Max. Charge Current | 105A |
| Max. Discharge Current | 105A |
| Recommended Charge Temp | 0°C~55°C |
| Recommended Discharge Temp | -20°C~60°C |
| Storage Temperature | -5°C~35°C |
| BMS Protection | Over/under voltage, over/low temp, short circuit, auto cell balancing |
| Low-temp Heating (Optional) | ≤0°C auto start; >5°C auto stop |
| Bluetooth Monitoring | Optional (Voltage/Current/Temp/SOC) |
| IP Rating | IP65 |
| Certification | UN38.3 |
| Cycle Life | >3000 cycles (0.5C, 80% DOD) |
| Package | Battery*1, User Manual*1, M8*12mm*2 |
Product Application
- 24V RVs, campers, caravans
- Marine / yachts / small boats
- Off‑grid solar energy storage
- 24V backup power systems
- Outdoor engineering & emergency power
- Golf carts & utility vehicles
- Industrial equipment & test instruments
Product Features
- 24V‑class Stable Output – 25.6V nominal for standard 24V systems
- High Current Support – 105A max charge/discharge
- Smart BMS – Full protection + automatic cell balancing
- IP65 Waterproof & Dustproof – For harsh indoor/outdoor use
- Optional Low‑temp Heating – Charging available at -20~0°C
- Optional Bluetooth Monitoring – Real‑time APP status view
- Multiple Operating Modes – Charge / discharge / standby / sleep
- UN38.3 Certified – Safe for global transportation
Product Advantage
- Lighter & smaller than equivalent lead‑acid batteries
- Maintenance‑free, no watering required
- Stable voltage, no sudden drop
- Wide temperature range: -20°C~60°C discharge
- Safe LFP chemistry, no thermal runaway
- Low self‑discharge & long standby
- 36‑month official warranty
- Standard M8 terminals for easy installation
FAQ
Q1: How to check battery status?
A: Use the optional Bms Blue Tooth APP to view SOC, voltage, current, and temperature in real time.
Q2: How does low‑temperature heating work?
A: Heating turns on automatically at ≤0°C (with external power) and turns off at >5°C to ensure normal charging.
Q3: How to wake from sleep mode?
A: Apply charging voltage ≥25.6V or discharge current >800mA.
Q4: What to do if the battery shuts down?
A: Recharge with ≥25.6V to reactivate after low‑voltage shutdown.
Q5: Can I charge and discharge at the same time?
A: No, this is prohibited to avoid damage and hazards.
Q6: What are storage requirements?
A: Store at 15–35°C, recharge every 3 months, avoid direct sunlight and heat sources.
Q7: What is the warranty coverage?
A: 36‑month warranty for failures under proper use; excludes improper operation, disassembly, or damage.
