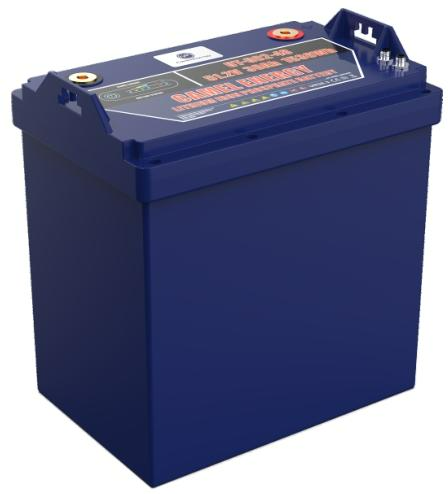

48V Golf Cart Battery RS485 Lithium 30ah Battery Bluetooth Phosphate Battery
Product Details
| Voltage | 48V | Capacity | 30Ah |
|---|---|---|---|
| Storage Range | -5℃~35℃ | Communication | RS485/Bluetooth |
| Cycle Life | >4000 Times, 0.5C, 80% DOD 25°C | Protection Level | IP65 |
| Applications | Golf Cars/Personal Transportation Vehicles (PTVs)/Utility Vehicles/ Low Speed Vehicles (LSVs)/Automated Guided Vehicles (AGVs)/Solar |
Product Description
UT-GC2-48 51.2V Nominal Voltage Lithium Iron Phosphate Golf Cart Battery with 4000+ Cycle Life and IP65 Rating
Quick Detail
- Brand: Camel Energy
- Model: UT-GC2-48
- Nominal Voltage: 51.2V
- Nominal Capacity: 30Ah
- Max. Parallel Modules: 4 (SOC difference ＜25%)
- Cycle Life: >4000 cycles (0.5C, 80% DOD)
- IP Rating: IP65
- Certification: UN38.3
- Communication Port: CAN Bus SAW J1939
- Terminal Type: M8-1.25 Threaded Studs
- Net Weight: 11.6kg
- Warranty: 36 Months
- Matching Monitor: GC MONITOR (sold separately)
Product Description
Camel Energy UT-GC2-48 is a high-voltage, compact lithium iron phosphate battery pack optimized for medium-power high-voltage equipment scenarios. Featuring a nominal 51.2V voltage and 30Ah capacity, it delivers stable high-voltage discharge performance, supports flexible parallel expansion (up to 4 modules) and integrates intelligent power management, all-round safety protection and professional communication solutions.
Equipped with 4-level SOC LED status indicators, CAN Bus communication and Bluetooth connectivity via the Battery Track APP, the battery enables real-time monitoring of core operating parameters and one-click firmware upgrades. Its IP65 dust and water resistance rating ensures reliable operation in harsh industrial and outdoor environments, while automatic shallow/deep sleep modes minimize idle energy consumption and extend service life. Certified to UN38.3 and backed by a 36-month official warranty, it complies with international transportation and safety standards, providing a space-saving, cost-effective high-voltage power solution for professional applications.
Product Specification
| Parameter | Value |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 30Ah |
| Max. Modules in Parallel | 4 (SOC difference ＜25%) |
| Recommended Charge Current | 15A |
| Recommended Charge Voltage | 54.7V~56V |
| Charge Voltage Cut-off | 56V |
| Discharge Voltage Cut-off | 44.8V |
| Max. Continuous Discharge Current (25°C) | 30A |
| Max. Pulse Discharge Current (30s) | 100A |
| Max. Instantaneous Discharge Current (1.5s) | 200A |
| Reserve Capacity @25A | 65min |
| Cycle Life | >4000 cycles (0.5C, 80% DOD) |
| Recommended Charge Temperature | 0°C~55°C |
| Recommended Discharge Temperature | -20°C~60°C |
| Storage Temperature | -5°C~35°C |
| Weight | 11.6kg |
| Dimensions (W*D*H) | 260*180*280mm |
| Protection Recovery | Button |
| IP Rating | IP65 |
| Certification | UN38.3 |
| Terminal Configuration | M8-1.25 Threaded Studs |
| Communication Port | CAN Bus SAW J1939 |
| Packing List | Battery*1, M8*12mm*2, Communication line*1 |
Product Application
UT-GC2-48 is a compact high-voltage lithium battery with flexible parallel expansion, widely applicable to 51.2V medium-power equipment scenarios including:
- High-voltage Light Industrial Handling: Small high-voltage electric forklifts, light AGVs with high-voltage power supply, warehouse precision material handling equipment
- High-voltage Electric Mobility: 48V series golf carts, electric sightseeing cars, patrol vehicles, low-speed high-voltage industrial working vehicles
- Commercial & Service Equipment: High-voltage industrial cleaning machines, commercial automatic equipment, medical high-voltage mobile auxiliary devices
- Energy Storage & Backup Power: Small high-voltage commercial energy storage systems, high-voltage communication base station backup power, outdoor high-voltage emergency power
- Outdoor & Portable Equipment: Small marine high-voltage auxiliary power, outdoor high-voltage engineering testing instruments, portable high-voltage construction power equipment
- Specialized Mobile Power: RV high-voltage auxiliary power, small electric vehicle supporting power, unmanned intelligent equipment high-voltage power source
Product Features
- High-voltage Compact Design: 51.2V nominal voltage with 260180280mm uniform compact dimensions, ideal for space-constrained high-voltage equipment installation.
- Flexible Parallel Expansion: Supports up to 4 modules in parallel (SOC difference ＜25%) to customize capacity for different load demands, no extra hardware modification required.
- Stable High-voltage Discharge: 30A continuous, 100A 30s pulse and 200A 1.5s instantaneous discharge, perfectly matching high-voltage medium-power load requirements.
- Intelligent SOC Monitoring: 4-level blue LED indicators for real-time visual capacity display; precise parameter tracking and data analysis via Battery Track Bluetooth APP.
- Smart Power Management: Standard/hibernation/sleep modes with automatic shallow (30mins inactivity) and deep (4 days shallow sleep) sleep switching, minimizing idle energy loss.
- Harsh Environment Adaptability: IP65 dust and water proof rating; wide temperature operation range (-20°C~60°C discharge, 0°C~55°C charge) for complex working conditions.
- Comprehensive Safety Protection: Button-type protection recovery; built-in over-voltage, over-temperature, over-current and short-circuit protection mechanisms for all-round safety.
- Professional Dual Communication: CAN Bus SAW J1939 port for seamless industrial automation system integration; Bluetooth for mobile APP control and firmware upgrades.
- Certified Reliability: UN38.3 certified for international transportation safety; strict manufacturing and testing standards ensure stable and consistent performance.
Product Advantage
- Superior Cycle Life: >4000 charge-discharge cycles under standard conditions, significantly reducing battery replacement frequency and long-term operating costs for high-voltage equipment.
- High-voltage & Space-saving: 51.2V high-voltage output with 11.6kg lightweight and compact design, saving installation space and easy for integration with mobile and precision equipment.
- Flexible Capacity Customization: 4-module parallel support meets on-demand capacity expansion needs, adapting to both small and medium high-voltage load application scenarios.
- Stable & Efficient Output: Consistent 51.2V nominal voltage with 65min reserve capacity @25A, ensuring continuous and reliable operation of high-voltage equipment without sudden power drop.
- Easy Operation & Maintenance: One-button start/stop and protection recovery; APP remote monitoring, parameter viewing and firmware upgrade, simplifying daily management and maintenance work.
- Strong Environmental Compatibility: IP65 dust and water resistance and wide temperature adaptability, suitable for dusty, humid, high/low temperature industrial and outdoor working environments.
- Rigorous Safety Compliance: UN38.3 international certification and multi-layer safety protection mechanisms, eliminating risks of fire, explosion and short circuit during use and transportation.
- Flexible Communication Design: CAN cable is optional for normal use; unconnected CAN port does not affect charging/discharging and protection functions, adapting to different application requirements.
- Standardized Installation: Uniform dimensions and M8 standard threaded terminals, enabling quick and stable connection with various high-voltage industrial equipment, reducing installation time and cost.
- Assured After-sales Support: 36-month official warranty for proper operation and installation, with professional technical support and maintenance services provided by the manufacturer; out-of-warranty maintenance is also available at customer's expense.
FAQ
Q1: How to check the remaining capacity of the UT-GC2-48 battery?
A: The battery is equipped with 4 blue SOC LED indicators: 4 LEDs for 76%-100% capacity remaining, 3 LEDs for 51%-75%, 2 LEDs for 26%-50%, 1 LED for 0%-25%. Real-time SOC and other core operating parameters (voltage, temperature) can also be viewed via the Battery Track Bluetooth APP.
Q2: How to wake up the battery from sleep mode?
A: Shallow sleep mode is activated after 30 mins of inactivity (no CAN/current signal, no key press, no alarms). It can be woken up via one key press, CAN message, or current load (≥1A). Deep sleep mode is activated after 4 days of shallow sleep, and can only be woken up by long-pressing the status button until all indicators light up from left to right.
Q3: What is the process to connect the battery to the Battery Track APP?
A: 1. Download "Battery Track" from Google Play (Android) or App Store (iOS); 2. Turn on your phone's Bluetooth and open the APP; 3. Click "Scan Bluetooth", select the battery's Bluetooth code, enter the default password 123456 to complete the connection.
Q4: What are the strict requirements for UT-GC2-48 parallel connection?
A: Max. 4 modules can be connected in parallel, and the SOC difference between all 4 battery packs must be less than 25%. Series connection is strictly prohibited as it may cause severe safety hazards (fire, explosion) and permanent battery damage.
Q5: Is the CAN cable necessary for the battery to work normally?
A: No. If there is no industrial communication or system integration requirement, the CAN cable can be left unconnected without affecting the normal charging, discharging and built-in protection functions of the battery. The CAN port is only for data transmission and industrial automation docking.
Q6: What are the key storage requirements for the UT-GC2-48 battery?
A: Store the battery at 15°C~35°C with 5%~95%RH (no condensation); avoid direct sunlight and keep at least 2 meters away from heat sources; do not invert the battery or subject it to mechanical impact/heavy pressure. Replenish charge every 3 months and fully recharge within 6 months of storage to maintain optimal performance and extend service life.
Q7: Does the UT-GC2-48 support simultaneous charging and discharging?
A: No. This product does not support simultaneous charging and discharging. Such operation is strictly prohibited to avoid battery overheating, performance degradation, permanent damage and potential safety risks.
Q8: How to restore the battery after the protection mechanism is triggered?
A: When the battery triggers protection due to over-voltage, over-temperature, over-current or other faults (red LED on), press the status/protection recovery button to restore normal operation. If the red LED remains on after recovery, stop using the battery immediately and contact Camel Energy’s after-sales service for professional inspection.
Q9: What is the scope of the 36-month warranty for this battery?
A: The 36-month warranty (counting from the purchase date) covers problems caused by proper operation and standard installation. It does not cover damage from improper operation/installation, unauthorized modification, mechanical impact, heavy pressure, or products without a warranty card. Out-of-warranty maintenance services are available at the customer's expense.
Q10: What cables and terminals should be used for battery connection?
A: Please use original or certified cables and the equipped M8-1.25 threaded studs for connection. Mismatched, uncertified or inferior accessories may cause poor contact, overheating and other serious safety hazards, and such use will void the product warranty.
