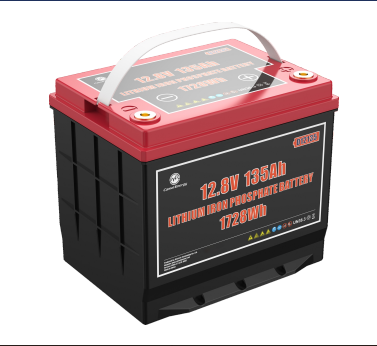

12.8V 135Ah LiFePO4 Marine Battery for Boats, Trolling Motors and Marine Electronics
| Voltage: | 12.8V | Capacity: | 135Ah (1728Wh) |
| Protection Grade: | Protection Grade: IP65 (Indoor/Outdoor) | Cycle Life: | 3000 Cycles (0.5C, 80%DOD) |
| Operating Temp: | Charge 0~55℃; Discharge -20~60℃ | Smart Features: | Built-in BMS; Bluetooth Connectivity (Battery Track App) |
| High Light: | 12.8V Marine Lithium Ion Battery,135ah lithium battery Indoor,li ion boat battery 1728Wh |
||
12.8V 135Ah LiFePO4 Marine Battery for Boats, Trolling Motors and Marine Electronics
- Model: D12135
- Cell Type: Lithium Iron Phosphate (LFP)
- Rated Voltage/Capacity: 12.8V / 135Ah
- Rated Energy: 1728Wh
- Charge/Discharge Current: Max 135A (continuous); 300A (20s)/800A (2s) instantaneous
- Charge/Discharge Cut-off Voltage: 14.6V / 10.8V
- Protection Grade: IP65 (Indoor/Outdoor)
- Cycle Life: 3000 cycles (0.5C, 80%DOD)
- Operating Temp: Charge 0~55℃; Discharge -20~60℃
- Certification: UN38.3
- Dimensions: 230*174*200mm (WDH)
- Net Weight: 12.5kg
- Smart Features: Built-in BMS; Bluetooth connectivity (Battery Track App)
- Warranty: 24 months
The Camel Energy D135 is a high-performance 12.8V 135Ah LiFePO4 marine battery engineered for demanding marine applications. Designed with automotive-grade LiFePO4 cells, an intelligent Battery Management System (BMS), and optional Bluetooth monitoring, it provides reliable power for trolling motors, fishing boats, yachts, sailboats, onboard electronics, and off-grid marine systems.
Compared with conventional lead-acid marine batteries, the D135 delivers significantly longer cycle life, lower weight, faster charging, and maintenance-free operation, helping boat owners reduce operating costs while improving overall system reliability.
With a usable energy capacity of 1728Wh, the battery is ideal for both deep-cycle propulsion and auxiliary power applications.
- Over 4000 cycles at 80% Depth of Discharge
- Up to 10 years design life under proper operating conditions
- Significantly reduces battery replacement frequency
The integrated smart BMS continuously protects the battery against
- Overcharge
- Over-discharge
- Over-current
- Short circuit
- Cell balancing
- Temperature protection
This ensures maximum battery safety and consistent performance even in harsh marine environments.
Compared with equivalent AGM or lead-acid batteries, the D135 weighs considerably less while delivering higher usable capacity.
Benefits include:
- Easier installation
- Improved boat efficiency
- Reduced overall vessel weight
- Better acceleration for electric boats
The optional Bluetooth APP allows users to monitor battery status directly from a smartphone.
Real-time information includes:
- State of Charge (SOC)
- Battery Voltage
- Charge/Discharge Current
- Remaining Capacity
- Temperature
- Cycle Count
- Cell Voltage
No additional monitoring equipment is required.
Designed for marine environments, the battery enclosure provides excellent protection against
- Water splash
- Salt air
- Dust
- Outdoor vibration
Suitable for long-term use on boats and yachts.
| Item | Specification |
|---|---|
| Model | D12135 |
| Cell Chemistry | Lithium Iron Phosphate (LFP) |
| Rated Voltage | 12.8V |
| Rated Capacity | 135Ah |
| Rated Energy | 1728Wh |
| Charge Cut-off Voltage | 14.6V |
| Discharge Cut-off Voltage | 10.8V |
| Max Continuous Charge/Discharge Current | 135A |
| Max Instantaneous Discharge Current | 300A (20s) / 800A (2s) |
| Cycle Life | 3000 cycles (0.5C, 80%DOD) |
| Built-in BMS | Voltage/current/temperature management + cell balance |
| Category | Parameter |
|---|---|
| Protection Grade | IP65 |
| Operating Temperature | Charging: 0~55℃; Discharging: -20~60℃ |
| Storage Temperature | -5~35℃ |
| Storage Humidity | 5%~95%RH (no condensation) |
| Dimensions (WDH) | 230*174*200mm |
| Net Weight | 12.5kg |
| Fixing Bolt | M8 |
| Certification | UN38.3 |
| Warranty | 24 months |
Provides higher usable energy than traditional lead-acid batteries of the same size.
LiFePO4 chemistry maintains a stable output voltage throughout the discharge process, improving equipment performance.
Supports significantly faster charging than AGM batteries, reducing downtime.
No electrolyte replacement.
No equalization charging.
No corrosion cleaning.
- No lead
- No acid leakage
- No toxic heavy metals
- Lower lifetime environmental impact
- Fishing boats
- Trolling motors
- Bass boats
- Sailboats
- Yachts
- Marine electronics
- GPS systems
- Fish finders
- Electric outboard motors
- Solar marine systems
- RV auxiliary power
- Off-grid power systems
| Feature | Camel LiFePO4 | AGM Battery |
|---|---|---|
| Cycle Life | ＞4000 | 300–500 |
| Weight | About 50% lighter | Heavy |
| Usable Capacity | 100% | Around 50% |
| Charging Speed | Fast | Slow |
| Maintenance | None | Required |
| Self-discharge | Very Low | Higher |
| Lifetime Cost | Lower | Higher |
- High-Capacity & Long-Lasting: 135Ah capacity and 1728Wh energy, meeting high-demand power needs.
- IP65 All-Weather Protection: Dustproof and waterproof, adaptable to harsh indoor/outdoor environments.
- Strong Current Output: 800A (2s) instantaneous discharge, suitable for high-power startup and heavy loads.
- Smart BMS Safeguards: Multi-dimensional protection prevents overcharge, over-discharge, over-temperature, and ensures cell balance.
- Bluetooth App Control: Real-time status monitoring and firmware upgrades via "Battery Track" App for convenience.
- Durable & Portable: 12.5kg design with M8 fixing bolts, easy to install and transport for mobile scenarios.
- Wide Temperature Adaptability: -20~60℃ discharge range, reliable in extreme climates.
- High Energy Density: Large capacity delivers extended runtime for high-power devices and long-duration use.
- Durable & Cost-Effective: 3000 deep cycles reduce replacement frequency, lowering life-cycle costs.
- All-Weather Reliability: IP65 protection and wide temperature range enable use in diverse environments.
- Smart & User-Friendly: App monitoring eliminates manual checks; firmware upgrades optimize performance over time.
- Safe & Stable: LFP cell intrinsic safety + BMS protection prevents thermal runaway and other hazards.
- Versatile & Portable: Balances high capacity with transportability, fitting multiple mobile and fixed scenarios.
- Certified Quality: UN38.3 certification and 24-month warranty guarantee product reliability.
Camel Energy provides professional OEM and ODM manufacturing services for global battery distributors and equipment manufacturers.
Available customization includes:
- Capacity customization
- Bluetooth APP branding
- BMS customization
- CAN / RS485 communication
- Logo printing
- Color customization
- Packaging customization
- User manual customization
- Certification support
Ideal for:
- Marine battery brands
- Boat manufacturers
- Battery wholesalers
- Importers
- Distributors
- Amazon sellers
Yes. The D135 is designed as a direct replacement for many 12V deep-cycle AGM and lead-acid marine batteries, offering longer runtime, lighter weight, and longer service life.
Yes. Optional Bluetooth connectivity allows users to monitor battery status in real time using a smartphone application.
Yes. The battery supports series and parallel configurations according to the recommended installation guidelines.
Yes. The D135 is specifically designed for deep-cycle marine applications including trolling motors, electric boats, and fishing vessels.
Yes. Each battery integrates an intelligent Battery Management System for protection against overcharge, over-discharge, over-current, short circuit, and temperature abnormalities.
Camel Energy can provide certifications according to customer and market requirements, including UN38.3, MSDS, CE, IEC, and other applicable compliance documents.
